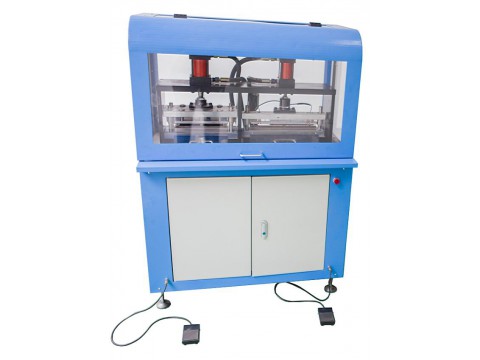

HS-2B punching machine
Product Introduction:
HS-2B Dual-card Punching Machine combines slotting and punching. It adopts hydraulic power punching method .It adopts photoelectric eye center location to accurate positioning with fast speed. It uses imported good quality mold, which is easy to be replaced. The machine is for punching A4 size PVC, ABS and etc. Punching effect is comparable with automatic high-speed die punch card. Punching is done after making holes without cutting.
Technical Parameter:
|
Model |
HS-2B punching machine |
|
Punching size |
International credit card standard size（ 85.7×54mm ） |
|
Card material size |
210 mm×297 mm |
|
Punching thickness |
0.3 mm－1.2mm |
|
Punching method |
Hydraulic |
|
Punching motion |
Constant |
|
Voltage |
220V |
|
Power supply |
220V AC 50HZ |
|
Power |
2.2KW |
|
Dimension |
850 ×410 ×1150 mm |
|
G.W |
275kg |
|
Productivity |
3000 cards / Hour |
