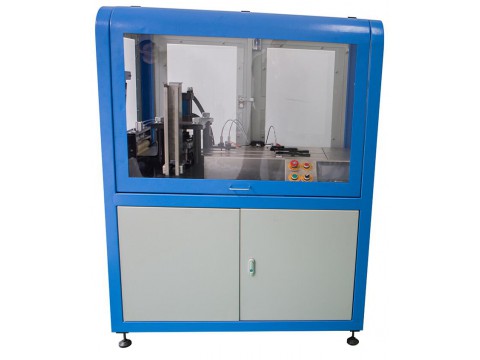

2A PLC Punching machine
Product instruction:
2APLC high speed automatic PLC punch machine,it adopts PLC control system.Feeding system is controlled by Omron servomotor and imported high precision ball screw as well as linear guide,balanced move and precision moving distance(positioning accuracy is less than 0.10mm).It adopts professional ultrasensitive opto-electrical recognizer to read the register marks to make the position reliable and precise,also low noise、large flow made in Taiwan hydraulic pump.The die of hydraulic cylinder is dieing smoothly and steady,also low noise.The mould is made by imported die steel.The software function is strong and insure punch precision even in the situation of material distortion or mechanism worn.The punch capacity is 30% higher than the similar products.It adopts two moulds to punch,so it is suitable for the medium range card making factories.
Advantage:
1,PLC controlled MMI(man-machine interface)
2,Reliable and precise position by opto-electrical recognizer to read the register marks in the cutting sheet.
3,Adopt the imported die steel to make puncher mould to cut the high-quality and smooth edge cards.
Technical parameter:
|
Model |
2APLC |
|
Suitable for |
0.3~1.0mm PVC and other plastic materials |
|
Punch layout |
2×5,A4 Size |
|
The number of punches |
2 |
|
Control method |
PLC control |
|
Max punch strength |
0~5000 kgs adjustable |
|
Cylinder stroke |
18mm |
|
Hydraulic oil tank volume |
120liter |
|
Air source |
0.6 MPa |
|
Air consumption |
100 L/min |
|
Power source |
AC380V 50/60Hz |
|
Power |
4.5kW |
|
Production capacity |
5000 cards/hour |
|
Size |
L1350×W600×H1300mm |
|
Weight |
600 kgs |
