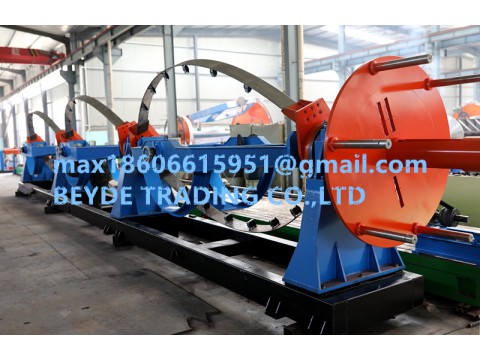

High Speed Skip Strander Bow Type Stranding Cable Twisting Machine.China Bow Strander

Click image to view original image
Brand: beyde
Price: 10000.00USD/SET
Min.Order: 1 SET
Supply 120 SET
Delivery: Shipment within 90 days since the date of payment
Address: China
Valid until: 2020-01-31 [Expired]
Updated on: 2018-06-10 13:49
Hits: 21319
Company Detail


Details

2.1) Pay-off stand
2.2) Wire guiding stand
2.3) Stranding cage
2.4) Closing die holder
2.5) Compacting device (selectable)
2.6) Non-metal taping device (selectable)
2.7) metal taping device (selectable)
2.8) Length counter
2.9) Dual wheel capstan
2.10) Take-up
2.11) Mechanical transmission system (selectable)
2.12) Electric control system
2.13) Safety protection system


3. Technical


Specification 400/500/600/800/1000
Dia. of wire( mm) 1.0-4.0
Armouring Dia(mm) 130
Rotation Speed(r/min) 22-53
Armouring Pitch(mm) 106-1570
TapingSpeed(r/min) 185-416
Taping Pitch(mm) 9.7-146

Rigid Type: 24+24,24+24+24, 36+36, 42+42, 48+48

Planetary Type: 24+24, 24+30, 30+30, 30+36, 36+36, 36+36+36, 48+48, 72+72
