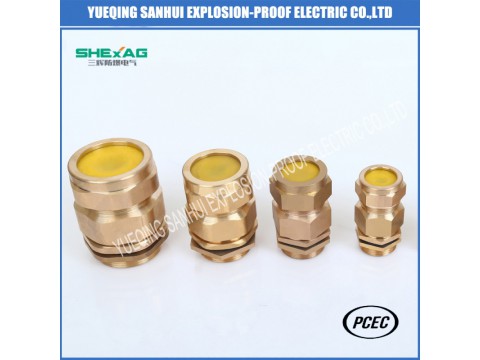

BDM-6 explosion-proof armored cable glands IP66
Product Features
- Brass or stainless steel,brass with nickel planted
- With characteristics of quick installation,safety,reliability, good protection and so on.
- It is suitable for clamping and fixing various types of armored cable
Outline dimension
Metric(M)
G
Outer diameter of cable (mm)
L1 GL (mm)
L Length (mm)
Outlet A
Inlet B
M16*1.5
-----
5-8
7-15
15
71
M20*1.5
G1/2
5-12
7-15
15
71
M25*1.5
G3/4
8-17
11-20
15
72
M32*1.5
G1
11-22
14-27
17
77
M40*1.5
G1 1/4
14-28
19-33
19
86
M50*1.5
G1 1/2
16-33
22-40
19
89
M63*1.5
G2
29-43
29-50
20
97
M75*1.5
G2 1/2
38-57
35-63
21
103
M85*1.5
G3S
38-72
41-77
24
106
M90*1.5
G3
38-72
41-77
24
106
M100*1.5
G4S
48-83
55-90
26
116
M110*1.5
G4
48-94
61-104
26
116
