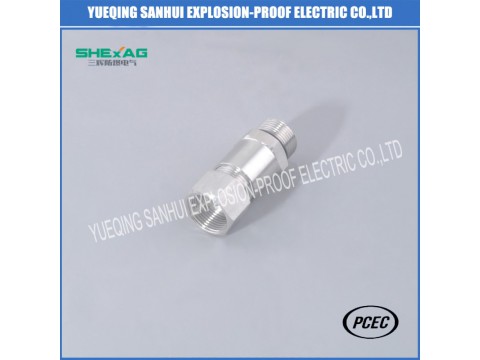

SHBDM-10 SINGLE COMPRESSION EXPLOSION-PROOF CABLE WIRING/STEEL PIPE WIRING (male and female thread)
We have A type,and B type(male ,and female thead type)
Product Features
- Made of high quality brass or stainless steel,using mechanical cable clamping device
- Surface treatment;nickel planted.passivation
- Sealing materials:NBR
- Protection grade:IP66
- Ambient temperature: Static from -40ºC to 100ºC,short up to 120º, Dynamic from -20ºC to 80ºC,short up to 100ºC.
Outline dimension
Specifications
A
AG
Cable range
C(mm)
Ex-mark
Protection Level
A type
B type
SHBDM-10G1/2
M20
G1/2
7-10
62
63
Exd IIC Gb
IP66
SHBDM-10G3/4
M25
G3/4
9-14
62
76
SHBDM-10G1
M32
G1
12-18
67
79
SHBDM-10G1 1/4
M40
G1 1/4
15-26
77
97
SHBDM-10G1 1/2
M50
G1-1/2
18-30
79
99
SHBDM-10G2
M63
G2
25-42
81
100
SHBDM-10G2 1/2
M75
G2 1/2
29-55
100
135
SHBDM-10G3
M90
G3
29-55
100
150
SHBDM-10G4
M100
G4
41-80
100
190
Note: NPT thread can also be provided.
For more details,welcome to check with us, or check our website:www.exproofcablegland.com
