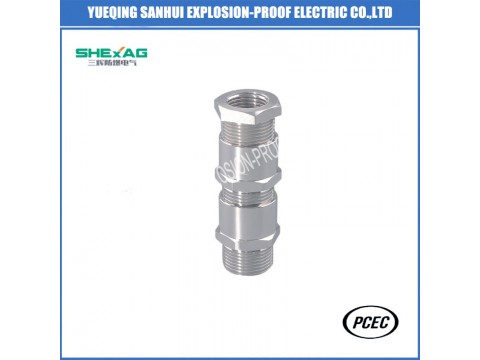

SHBDM-14 Double compression unarmored cable gland/wiring gland
Product Features
- Brass or stainless steel,brass surface nickel planted
- With characteristics of quick installation,safety,reliability, good protection and so on.
- It is suitable for clamping and fixing various types of cable
- Protection grade:IP66
- Ambient temperature: Static from -40ºC to 100ºC,short up to 120º, Dynamic from -20ºC to 80ºC,short up to 100ºC.
Outline dimension
M
G
Cable range(mm)
L1 Thread length (mm)
Length(mm)
M16*1.5
G1/2S
8-12
16
81
M20*1.5
G3/4S
8-12
16
81
M25*1.5
G3/4
10-16
16
87
M32*1.5S
G1S
1-20
17
90
M32*1.5
G1
13-20
18
92
M40*1.5
G1 1/4
16-25
18
102
M50*1.5
G1 1/2
20-32
20
107
M63*1.5
G2
26-40
20
108
M75*1.5
G2 1/2
32-45
20
112
M85*1.5
G3S
32-60
20
114
M90*1.5
G3
32-60
20
126
M100*1.5
G4S
50-78
20
126
M110*1.5
G4
50-78
20
128
Note: NPT thread can also be provided.
