Example:SH-KZX15D-W-4-4-4-1(II B)

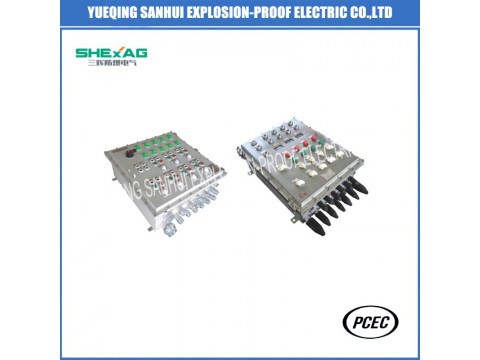

Noted:Explosion-proof power control box (degree B,outdoor type) with four buttons,four indicators,two switches and one display meter on panel.
Application
1. Hazardous:division1&2
2. Explosive gas atmosphere:IIA,IIB
3. Indoor and outdoor(IP66)
Features
1.Materials:CS or SS,argon protected precision welding.
2.Surface treatment:coating or chemical treatment
3.Inlet and outlet:with explosion-proof cable gland
4.Inlet,outlet and size can be designed according to the requirement of customer
Main technical parameters
|
Rated voltage(V) |
Rated current(A) |
Ex-mark |
Degree of protection |
Erosion-proof class |
|
AC 110/220/380/660 |
≤630 |
Exd II BT6 Gb Exde II BT4 Gb Ex tD A21 IP66 T80℃ |
IP66 |
W,WF1,WF2 |
|
DC48/24/12 |
≤100 |
Model
B(mm)
H(mm)
D(mm)
SH-KZX15D-W-4-2-3-0(IIB)
630
450
184
Noted:Above example merely be illustrated,various boxes can be made according to the requirement of customer.
