1. product profile and features

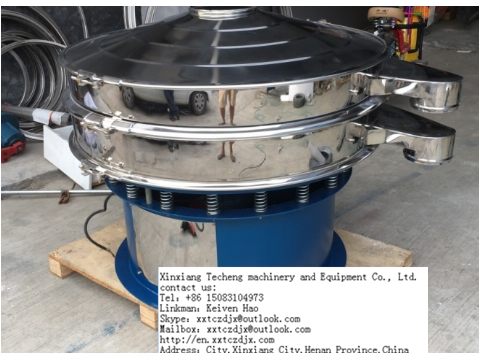

The 2. VB full stainless steel vibrating screen is mainly used in the screening and filtering of the pharmaceutical industry, which ensures the health and safety of the food to the greatest extent.
3. characteristics:
The 1.VB full stainless steel vibrating screen greatly improves the service life of the vibrating screen.
2. to solve the problem of the pollution of the material because of the bad working environment that makes the lower part of the vibrating screen rusty.
Characteristics of rotary vibrating screen:
It has high efficiency, compact and durable design, no powder and mucilage are suitable for using.
It is easy to replace the screen, simple operation, convenient cleaning.
I do not mesh plug, the powder can not fly, to sieve 400 mesh or 0.028mm.
Some impurities and coarse material discharged automatically, continuous operation.
Applicable industry:
Chemical industry: resin, paint, industrial drugs, cosmetics, paint, Chinese medicine powder and so on.
Food industry: sugar, starch, salt, Rice noodles, milk, eggs, soy sauce, juice Soybean Milk, etc..
metal, mining and metallurgy: aluminum powder, lead powder, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolytic copper powder, magnetic material, abrasive powder, refractory material, kaolin, lime, alumina, calcium carbonate, quartz sand etc..
Pollution treatment: the characteristics of waste oil, wastewater, dyeing and finishing wastewater, auxiliaries and active carbon
Reference materials for the use of vibrating screen:
It features you
1) the unique screen structure design, convenient and rapid replacement screen (only 3 to 5 minutes), in addition to this design
All kinds of screen nets are allowed (nylon, special dragon, PP net).
2) the screen machine design; exquisite and easy to assemble, one person can operate the screen machine.
3) compared with other related brand manufacturers, it has large screening area and high efficiency.
4) the parent network to fully support the fine mesh, so fine mesh scored a longer life, and reduce the supplies of fine mesh, and long time with the production process can reduce a lot of cost.
Function and principle:
The basic principle by the motor shaft installed on the bottom of the hammer (uneven, Heng hammer) of the motor rotary motion into a horizontal, vertical, inclined three sport, and then communicated to the sports screen. Changing the phase angle of the upper and lower weight of the hammer can change the direction of the moving of the raw material.
Instructions for use of motor:
When the motor meets the following conditions, it can output the rated exciting force continuously.
1. Vibration acceleration: no more than 7g (G: gravity acceleration)
2. Ambient temperature: no more than 40 degrees C
3. Altitude: no more than 1000M
4. Power frequency: 50Hz
5, voltage: 380V
6, Wen Sheng: less than 80K (resistance method)
