Description

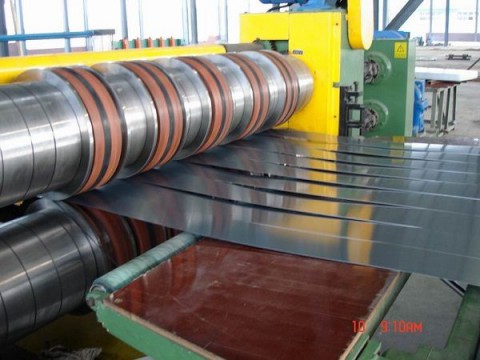

Slitting line
Slitting line is mainly used to slit kinds of wide steel strip into certain width and then recoil them to meet the request of various procedure for welded pipe and cold rolled section steel production.
Production Process of Slitting Line
Loading Coil → Uncoiling → Leveling → Cutting the Head and End → Circle Shear → Slitter Edge Recoiling → Accumulator → Steel Head and End Bending → Separating → Tensioner → Coiling Machine
Note:We can design and manufacture pipe making machine according to customers' requirements.
| No. | Model | Roll Width(mm) | Thickness(mm) | Cutting Speed(m/min) |
| 1 | ZJ1000 | 500-1000 | 0.18-1.5 | 80-100 |
| 2 | ZJ1250 | 900-1250 | 0.5-2 | 50-90 |
| 3 | ZJ1500 | 1000-1500 | 1.8-4 | 40-80 |
| 4 | ZJ1600 | 1000-1600 | 2-6 | 30-70 |
| 5 | ZJ1600 | 1000-1600 | 4-10 | 20-70 |
| 6 | ZJ1600 | 1000-1600 | 4-12.7 | 20-60 |
| 7 | ZJ1800 | 1000-1800 | 5-14 | 15-60 |
| 8 | ZJ2000 | 1200-2000 | 6-16 | 12-50 |
Price
- Delivery Port :Tianjin
Packaging & Delivery
- Packing :container
- Delivery Lead Time :2-3 months
