100TPD large scale palm oil processing machine can divide into sterilizing section, threshing section, digesting section, pressing section, clarification section and palm kernel recovery section.
100TPD large scale palm oil processing machine in malaysia

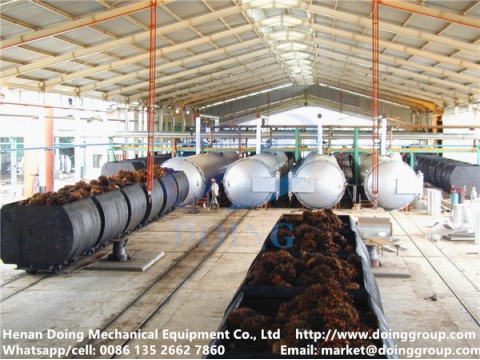

Palm fruit sterilizing station:
FFB transported by scraper conveyer fall into sterilizing tank, make FFB soft,get more oil yield. sterilizing time 90~120mins, temperature 130~145℃.Sterilizer can be design as owner’s requirement.horizontal sterilizer or vertical sterilizer for our customer.
Palm fruit threshing station:
In the threshing process of palm oil mill. The fruitlets are separated from the whole bunches by use of stripper machine. Threshing is generally mechanical in large palm oil mill by use of thresher, which rotates or vibrates to remove the fruits from the bunch.
Palm fruit digesting & pressing station:
Before extracting oil, the palm fruits need to be crushed in digester machines. To augment oil yield, the fruit pulp is also warmed in this process. The mesocarp and nuts can be squeezed together in palm oil making/pressing machine. The pulp is then pressed, which bursts the oil-containing cells, releasing the palm oil.
Palm oil clarification station:
A mixture of oil, water, and solids from the bunch fibres is delivered from the palm oil digesting & pressing station to a clarification tank of palm oil mill equipment machinery. In the conventional process, separation of the oil from the rest of the liquor is achieved by settling tanks based on gravity. The mixture containing the crude oil is diluted with hot water to reduce its viscosity. A vibrating screen helps remove some of the solids.
Palm kernel recovery section:
After palm oil expelling, the solids parts discharged from the screw press is mixture of fiber and nuts. In palm kernel recovery plant, the nuts and fiber are separated by physical means. The nuts are sent to palm kernel crushing and solvent extraction plant to make palm kernel oil, while the fiber is used as biomass fuel in boiler on-site.
Henan Doing Company is specialized in researching and developing in palm oil processing plant, palm oil refining machine, layout design and equipment design, we can also provide strong technical support. With our development in palm oil processing field, our company can offer advanced technology and our market expand to Malaysia and Indonesia and Africa, Our company can offer turn-key project, old palm oil mill update or reconstruction, we can offer abroad engineering service.
Main business:
Palm fruit /palm kernel pressing line:
1–2–3–5TPH small palm oil processing machine
15–30–45–60–80–120TPH palm oil processing machine;
5–600TPD palm kernel oil processing machine;
Palm oil refining:
1–2–3–5–10TPD batch palm oil refinery machine;
10–15–20–25–30–50TPD semi continuous palm oil refinery machine;
50–80–100–150–300–600TPD full continuous palm oil refinery machine;
