We,Henan Doing Mechanical Equipment Co.,Ltd is a leading manufacturer specialized in waste tyre /tyre/rubber pyrolysis plant has developed continuous waste tyre pyrolysis plant.
Our continuous waste tyre pyrolysis plant can continuously process tyre into crude oil and carbon blacks without stop. All the continuous waste tyre pyrolysis plant is controlled by PLC(programmable logic controller), so it is very easy to operate it and our customers can save much cost of time and labor.
For our continuous waste tyre pyrolysis plant,the applicable raw materials can be polythene,polypropylene,polystyrene,ABS...

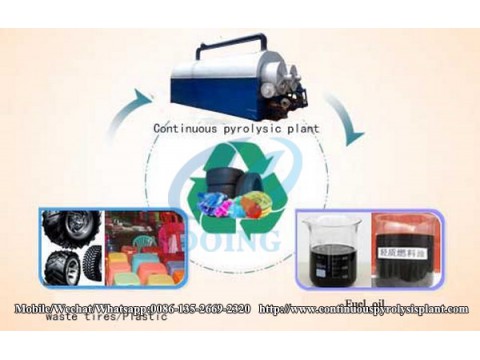

The final products from tyres continuous pyrolysis process will be fuel oil and carbon black.
Working process of continuous waste tyre pyrolysis plant
1.All available tyre can be shredded by tyres crusher, and then feed tyre granules directly into tyre continuous pyrolysis plant through the feeding door.
2.Our feeding door is with screw inside, so it can help you easily convey the tyre granules into our reactor No 1, then all the tyre can be decomposed under the high temperature through reactor No 1 to reactor No 2,then to reactor No 3...Until all the tyre fully pyrolysed, then all the carbon black powder will be discharged automatically to the carbon black tank.
3. All the available oil gas will be cooled by circulation water and the extra pyrolysis gas will be recycled through pipes into the burners for heating again. In our continuous waste tyre pyrolysis plant,the water circulation system and extra pyrolysis gas recycling system will help you save much fuel and water resource,in this way, our tyre continuous pyrolysis plant can minimize your cost and maximize your profits.
Main features of continuous waste tyre pyrolysis plant：
1: Fully automatic with low labour cost
Our conitnuous waste tyres pyrolysis plant is controlled by PLC system with automatic feeding and discharge system, which only need 1-2 worker for operating the PLC or computer is ok.
2:Fully pyrolysis for high oil output
Our continuous waste tyres pyrolysis plant adapts to multiple reactor design which can make fully pyrolysis of waste tyres, thus to get high oil output.
3:Big capacity
Also due to continuous feeding and discharge system, and unique multiple reactor design, our fully automatic continuous waste tyres pyrolysis plant can process at least 10 tons waste tyres per day, up to 100T/D.
4: Internal rotating for continuous operation
For external rotating system, you have to change the sealing material every three days, thus cannot achieve he real sense of continuous process. But our continuous waste tyres pyrolysis reactor adapts internal rotating method, which no need to worry about the sealing of the external rotating system.
5:Long working life
During the continuous pyrolysis process, reactor is heated by indirect hot air heating, which will not damage reactor so much, thus to keep long usage life of the reactors.
Solution of fully automatic continuous waste tyre pyrolysis plant，If you’re facing waste tyres pollution or disposal problems, and be badly in need of a processing system, please feel free to contact us. We DOING Company are always ready to provide you the best solution.
