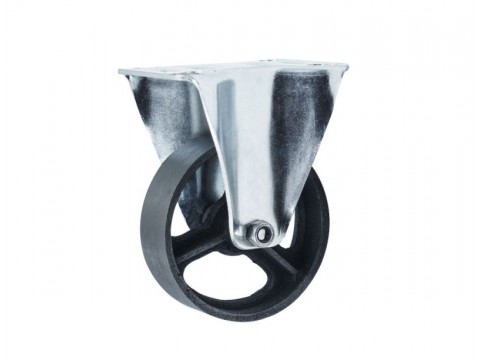

Iron Wheel
Details
Housing：
Solid steel welded construction,
Electrophores is plated double ball-race swivel head,
dust-proof seal heat treated ball-race,
hardened steel balls
Wheel:
Materials:Black Cast Iron
Bearing type:Precision double ball bearing
Feature of Vintage Cast Iron Casters:
1.Vintage caster wheels usually means cast iron casters in old school.
2.Whole black design, more noble and fashion.
3.Swivel and rigid mount type.
4.Wildly use in industrial trolley, coffee table, furniture vintage bed and so on.
5.Large Caster Wheels For Furniture
6.Each Vintage cast iron caster wheels are unique, with different details and may include intentional imperfections (i.e. nicks, scrapes, rust/corrosion, blemishes) for aesthetic purposes.
Specification
| NO. | Materials | specification | diameter | Wheel width | Mounting height | Roof size | Mounting hole distance | Load |
| 0191 | Iron wheel | universal | 75 | 25 | 92 | 75*60 | 55*42 | 70 |
| 0192 | 80 | 27 | 106 | 105*80 | 80*60 | 100 | ||
| 0193 | 100 | 30 | 129 | 105*80 | 80*60 | 120 | ||
| 0194 | 125 | 37.5 | 157 | 105*80 | 80*60 | 150 | ||
| 0195 | 160 | 45 | 193 | 130*110 | 105*80 | 200 | ||
| 0196 | 200 | 50 | 235 | 130*110 | 105*80 | 230 | ||
| 0197 | Orientation | 75 | 25 | 92 | 75*60 | 55*42 | 70 | |
| 0198 | 80 | 27 | 106 | 105*80 | 80*60 | 100 | ||
| 0199 | 100 | 30 | 129 | 105*80 | 80*60 | 120 | ||
| 0200 | 125 | 37.5 | 157 | 105*80 | 80*60 | 150 | ||
| 0201 | 160 | 45 | 193 | 130*110 | 105*80 | 200 | ||
| 0202 | 200 | 50 | 235 | 130*110 | 105*80 | 230 | ||
| 0203 | brake | 75 | 25 | 92 | 75*60 | 55*42 | 70 | |
| 0204 | 80 | 27 | 106 | 105*80 | 80*60 | 100 | ||
| 0205 | 100 | 30 | 129 | 105*80 | 80*60 | 120 | ||
| 0206 | 125 | 37.5 | 157 | 105*80 | 80*60 | 150 | ||
| 0207 | 160 | 45 | 193 | 130*110 | 105*80 | 200 | ||
| 0208 | 200 | 50 | 235 | 130*110 | 105*80 | 230 |
