Soybean oil solvent extraction plant oil solvent extractor

Click image to view original image
Brand: DOING
Certification: CE&ISO
Warranty: 1 Year
Condition: New
Price: 130000.00USD/set
Min.Order: 1 set
Supply 5 set
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-07-23 19:49
Hits: 23638
Buy
Company Detail


Details

Soybean oil solvent extraction plant is a kind of oil leaching through soaking or spraying pre-pressed cake by a certain organic solvent, which adopts the chemical leaching oil process. The principle of this part is the different solubility of solvent.

based on the competitive advantages in both structure and utilization, cooking oil solvent extraction technology has become the most advanced production technology in the international edible oil processing field.

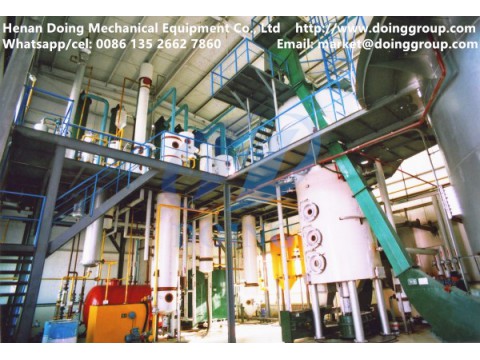

Soybean oil solvent extraction plant

Soybean oil solvent extraction plant


* Soybean oil solvent extraction plant application

Solvent extraction fits for pre-press extraction of high-oil-content materials like sesame seeds and second time extraction of oil cake produced by low-oil-content materials like soybeans.

* Unique features of doing company soybean oil solvent extraction plant

(1) High oil yield rate and obvious economic benefits.

(2) Low residual oil rate in the dry meal and oil cake.

(3) Low consumption and high productivity.

(4) High automatization.

(5) Latest design, excellent quality and professional installation team.

* Main process of soybean oil solvent extraction plant

A complete engineering & technology service in whole edible oil solvent extraction process including:


Soybean oil solvent extraction process

Soybean oil solvent extraction process

1. Pre-treatment Process

Pretreatment Equipments which is used to pretreat the raw material include: shelling and husking equipment, Sieving equipment and roasting machine.

2. Pre-pressing System

Prepressing Equipments include: oil prepressing equipment, Steam and frying machine. This step is to press the raw material into crude oil.

3. Solvent Extracting System ( Extracting Equipment, Desolventizer Toaster )

Solvent extracting is the core process for a complete soybean oil solvent extraction plant, which uses organic solvent through soaking or spraying contact methods to extract oil from oilseeds. The materials(for pretreatment) are sent to rotary extraction by the scraper conveyor, extracted by the solvent so that oil fats can be dissolved. After this step, you will get meal and mixed oil. After that the meal is sent to the toaster, through which the solvent will separate from the meal. Then the solvent goes to condenser and is recycled to rotary extraction. Consequently, after the solvent is completely evaporated and left with purified oil fats, the crude oil is gained.

The advantages of vegetable oil solvent extraction plant:

First is high oil output.the oil residue of screw pressing way can be higher than 5%.But the oil residue of extraction way will be lower than 1%.
Second is extraction way has less cost,high oil yield,high efficiency,better working stability,easy operation etc advantages.

Henan Doing Company has rich experience of design, manufacturing and installation of soybean oil solvent extraction plant with guaranteed high efficiency, high profit and reliable extraction process. Doing Company welcome you! And wait for your enquiry! Welcome to contact us! Get free quote on line.

Contact: Ms Sophia

Skype: sophia.zang1

Whatsapp/cel: 0086 135 2662 7860

Tel: +86 371 5677 1823

Email: market@doinggroup.com

Website: http://www.doinggroup.com

http://www.edibleoilrefinerymachine.com

Learn more: Loop type extractor for soybean oil solvent extraction plant

soybean oil refining machinery
