Multi-span plastic film greenhouse is widely used in the cultivation of tomato,vegetables, fruits and flowers. It can provide the conditions of suitable illumination, moisture and temperature, raising the output and resisting the natural disasters. It can bring forward or backward the provision, remitting the contradictions of provision and demand.

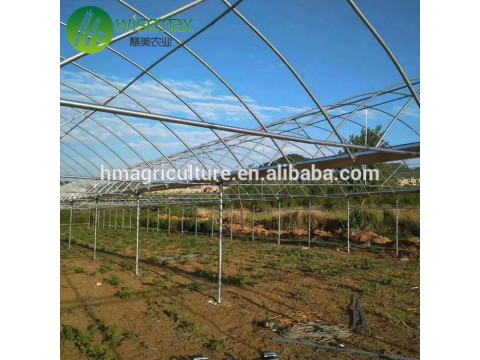

Multi-span plastic film greenhouse is composed by hot galvanized pipe with three layers film for the covering material. The frame structure is simple, cheap cost and easy to install.
|
Specification of greenhouse
|
|||
|
Production name
|
Multi-span plastic film greenhouse
|
||
|
Length
|
10-200m,customize
|
||
|
Width
|
8m,16m,24m,32m,40m,48m.......,can customized
|
||
|
Roof height
|
4-8m,can customized
|
||
|
Wall height
|
2-5m,can customized
|
||
|
Greenhouse farme
|
Hot galvanized steel pipe,diameter is 25mm,32mm,40mm,42mm,50mm,60mm
|
||
|
Cover film
|
PE 120micron,150micon,200micron,customize
|
||
|
Ventilation
|
Two sides ventilation by manual/electric roll up machine
|
||
|
Wind load
|
140km/h
|
||
|
Snow load
|
0.5KN/M2
|
||
|
Plants hanging load:
|
0.3KN/m2
|
||
|
Rain drainage
|
140mm3/h
|
||
|
Temperature resistance range
|
-40 ~ 120°C
|
||
|
Option
|
Cooling fan,cooling pad,shade net,heater,lights,irrigation system
|
||
|
OEM
|
Yes
|
||
Main Features
1) Simple and strong structure ,easy to installation and maintainessing
2) The greenhouse used for protect from the rain,preserve moisture,insect prevention,cooling,keep warm and so on.
3) Excellent hot galvanized steel structures and accessories , anti-corrosion . 15 year using life
4)entilation and insect nets can give your planting under comfortable situation. Increasing yield
5) Best after sales service and 15years experience in greenhouse
Steel structure
Hot galvanized steel structures and accessories , anti-corrosion . 15 year using life .
The main column and arch pipe according to the wind load and snow load
Ventilation system
Two sides ventilation by manual/electric roll up machine
Roof vebtilation by electric motor
40mesh insect net will be offered for vents
Shading system
The shate rate have 65%,75%,85%,95% and so on
There are two types: one is ribbon-like filament,another is round wire.
The function is blocking the strong light into the greenhouse, reduction of temperature.
