It is mainly composed by three parts:
1. Hot galvanized steel pipe structure: 25mm/32mm/40mm/50mm/60mm(Thinckness:1.0-2.0mm) steel pipe for choose.
2. Covering material: 80-200 micron 3 layers extruding film for choose.
3. Connection accessories: circlip, card slot,clamp,top pressure spring,squeeze film line spring, squeeze film line, insect net, squeeze film clip, roll up device, door angle, anchor, slot-fixed clip, duckbill clip, arch connection pipe.
All the parameter can be changed according to your requirment.
|

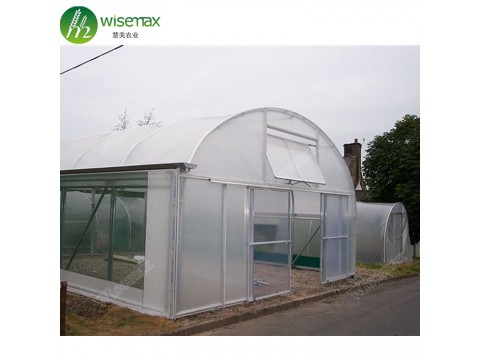

single span tunnel greenhouse
|
|
|
Width
|
6m,7m,8m,9m,10m,12m
|
|
Length
|
10-100m
|
|
Shoulder width
|
1.3-3.3m
|
|
Total height
|
2.5-5.0m
|
|
Wind load
|
0.35KN/m2
|
|
Snow load
|
0.25kN/m2
|
|
Rainfall
|
140mm3/h
|
|
Plants hanging load
|
0.15KN/m2
|
Option System
(1)Cooling Pad and Fan System
(2)Lighting System( philips sodium lamp)
(3)Heating System (water, gas, coal heating)
(4)Ventilation System
(5)Indoor & Outdoor Shading System
(6)Control System
(7)Mobile / Fixed Seedbed
(8)Irrigation & Fertilization System
Application:
Greenhouse is Widely used in planting vegetables, flowers, nursery stock and other large-scale production .
