Palm oil milling machine in Ghana

Advantages of palm oil milling machine
1) High oil yield, obvious economic benefit.
2) Less residual oil rate in the dry meal.
3) Improving the quality of the meal.
4) Low processing cost, high labor productivity.
1)Reception Station: used for loading palm fruit brunch from plantation, transport to sterilizer. Reception station adopt steel structure and concrete structure. Save equipment cost and construction cost.
Have hydraulic control system, hydraulic door open/off automatic achieve continuous operation. Reduce operator, operate more easily and improve work efficiency.
2)Sterilizing Tank: The sterilizing tank uses direct steam to process, which can reduce activity of the enzyme, prevent the rancidity, ensure the good quality of the crude oil. At the same time, it is good for the threshing process.
3)Threshing station: Fresh palm fruits separate from bunches by thresher rotary drum rotating. Palm fruits are conveyed to digesting tank by elevator. Empty bunches are coveyed out of factory by scraper conveyor.
4)Digestor: Inside of sterilizer, there are some baffle and stirring arm, under the drive of top motor. Baffles break off the palm fruit, then heat palm fruit pulp. So that can press oil easily. Get higher oil yield. Meanwhile there is   directly steam inlet digester, to adjust material moisture.
5)Pressing Machine: The palm fruit oil yield increases by adjusting material moisture and temperature in digesting tank. Digesting tank uses liquid level control, so material can distribute automatically and equipment runs fully automatically. Pressing machine uses hydraulic control system to adjust spacing between pressing bolts. So it can be suitable for various palm fruit species and guarantee the oil yield.
6) Kernel Recovery Station: Using air duct system to separate palm shell and kernel. Meanwhile, using special mud bath equipment to separate palm kernel and shell according to their different density. So it has high separation rate. There are some fiber cover the palm nut, in order to get palm kernel, should remove the fiber, palm shell. Fiber and shell is very good resource for boiler fuel.

7)Clarification Station: Oil purifying system, using latest technology, on the premise that guarantee oil quality, we try our best to reduce machine inverstment and oil loss. In actul production, it has been verified that using new  technology can reduce oil loss below 1.3%.

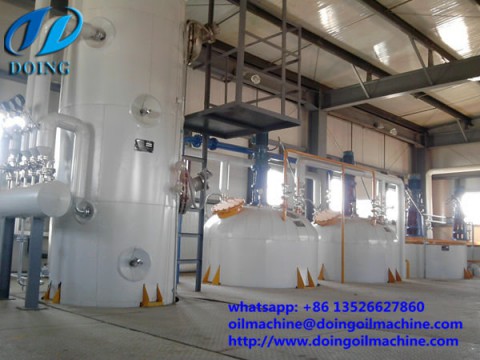

Palm oil refinery plant

8)Palm oil refinery technology: Oil refining is based on the difference of oil and the impurities in the physical and chemical properities, separate the grease and impurity by some technical ways, in order to improve the oil edible,      storage stability and safety process. Oil refining process is divided into chemical refining and physical refining.

The oil quality outcome standard:

1. Grade one for salad oil
2. Grade two for high quality cooking oil
3. Mixture and volatile less than 0.25%.
4. Impurity less than 0.2% .
5. AV (mgKOH/g) less than 7.

6. FFA less than 3.5%.

Palm oil fractionation plant

9)Palm oil fractionation technology is a new oil processing technology. Using palm oil fractionation technology can get 8℃,10℃,14℃,18℃,24℃,33℃,44℃,55℃ etc, different melting point's palm oil product. At    the same time, it can also be used to do cottonseed oil, fish oil ,pork oil and other animal oils. This prominently improves the added value of the oil products, increase the economic benefit of enterprise.
