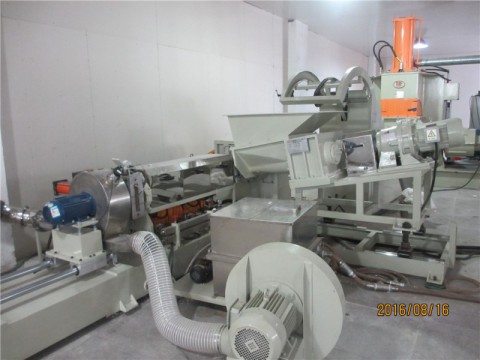

Rubber granulator
The mass material by elevator, conical screw feeding machine, extruder, cutting, cooling, screening and terminal silo，produce processing full automation .After the material were refined , trough feeding it is forced to enter the single screw extruder . The core of the screw is connect with water, and the screw is completely dispersed without excessive friction heat.Excellent dispersion effect, the current of main machine is small, energy saving and environmental protection.The precise temperature control of the rubber granulator ensures the technology of low temperature granulation and the special isolation agent recovery system, which can effectively solve the dust problem in production. Moreover, the added isolation agent will not cause too much waste.The recovered isolator can be reused.
The biggest technical characteristic of the rubber granulator is that it adopts the cold processing , which has the characteristics of low processing temperature,
Prepare for start machine
1. Whether the electrical wiring is accurate or whether loose.
2,use megger measure motor, cast aluminum heater of the insulation resistance shall not be less than 0.5 M Ω.
3. All thermocouples, melt sensors and other detection elements whether are installed well.
4. The main motor voltage is 380V, and the frequency range is 0-50hz.Screw speed 0-130r/min.
5. Add high temperature heat conduction oil WD320 to the mould temperature machine.
6. Check the lubrication system:
