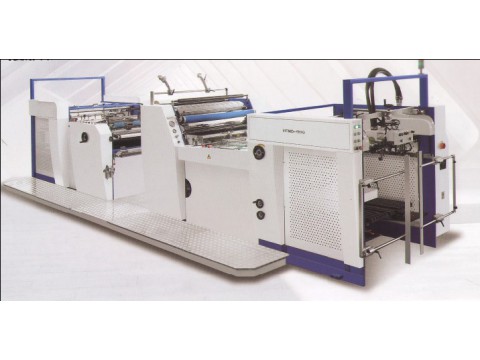

YFMD Automatic Laminating Machine apply to the equipment complex of BOPP thermal lamination film and paper. It is consisted of auto feeding system, positioning, laminating system, auto breaking and auto picker collector.
It is a new type of after-print laminating machine. The machine centralizes the features of compact structure, high automation, humanized operation design.
Application:
The machine widely used in textbooks, books, calendars, cards, product samples, packaging Box etc. It is an excellent choice for printing and packaging factory, professional after-print laminating factory and so on. Which can improve printing quality and decrease the technical cost.
Process:
BOPP or non-glue plastic film convey from release air shaft, through the convey roller and curved roller, in the meanwhile automatic conveyor automatically sent paper to laminating machine host. It adopts heating roller and pressure way to laminating BOPP film and non-glue film on paper.
Heating roll adopts oil heating system to homogenize and stabilize laminating temperature. The laminated goods will be auto breaking and then to automatic picker collector to finish collecting.
PLC control system:
The electric and pneumatic devices are controlled by programmable control system(PLC), main components adopt international brands, need one person to operate.
User only need to input processing paper size on the text screen, then can achieve film laminating and paper slitting.
The equipment is very suitable for large size laminating companies.
Main device:
-Auto feeding
-Auto breaking
-Auto picker collector
-PLC control system
-Anti curved device
-Electromagnetic heating system
-Push and pull registration
Optional device with surcharge:
-Automatic Powder cleaner
-Chrome-plating double roller
-Circulation hot water temperature controller
Main parameter:
Model: YFMD-1100
Max. Paper Size(W*L): 1080*940mm
Min. Paper Size(W*L): 300*300mm
Machine speed: 0-80m/min
Paper gsm: 120-500gsm
Machine temperature: 80-130℃
Laminating roller diameter: Φ400mm
Machine power: 23kw
Weight: 4000kgs
Machine Dimension w/ auto picker collector(mm): 7100*2000*1900
Model: YFMD-1200
Max. Paper Size(W*L): 1080*1200mm
Min. Paper Size(W*L): 350*350mm
Machine speed: 0-80m/min
Paper gsm: 120-500gsm
Machine temperature: 80-130℃
Laminating roller diameter: Φ400mm
Machine power: 26kw
Weight: 4800kgs
Machine Dimension w/ auto picker collector(mm): 7300*2000*1900
Model: YFMD-1450
Max. Paper Size(W*L): 1092*1450mm
Min. Paper Size(W*L): 400*500mm
Machine speed: 0-80m/min
Paper gsm: 120-500gsm
Machine temperature: 80-130℃
Laminating roller diameter: Φ400mm
Machine power: 26kw
Weight: 5500kgs
Machine Dimension w/ auto picker collector(mm): 8000*2000*1900
Electrical components list for YFMD based on 380V/50HZ/3PHASE:
1. circuit breaker DZ47-60C40 C16: 2pcs
2. Frequency converter 3φ 380v 2.2kw: 1pc
3. Power S-100-24V: 1pc
4. Touch screen Model LEVI430T: 1pc
5. Small circuit breaker 1 C1X1610: 4pcs
6. Small circuit breaker 2 C1R3210: 1pc
7. Button switch IBZ.BZ101/2 C: 8pcs
8. Servo motor BcmAc30404PB: 1pc
9. Servoamplifier ASD-A0421-AB: 1pc
10. Solid state relay RJGX-3D4860: 1pc
11. PLC: 1pc
