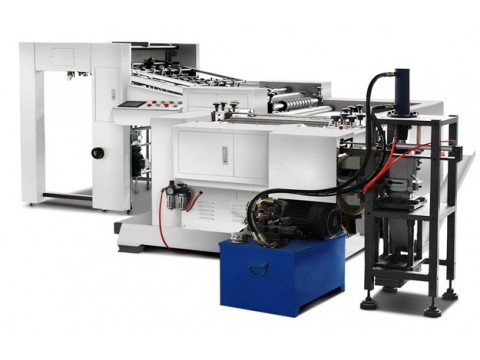

Click image to view original image
Machine introduces:
This machine is mainly used for cutting of various types of cards. It not only has high efficiency but also has very high cutting accuracy, so it can cut cards and poker cards of different specifications, and ensure the order of printing not changed, and collect the cards in its designed number order. It is the professional equipment for poker and playing cards manufacturing.
The machine is automatic for whole production process: automatic feeder, automatic cutting, automatic collecting poker or cards. It is safety in operation and simple for operating with stable in performance.
The step of producing cards:
1.Cards-matching 2. Edge punching 3. Optional: hole drilling
Main configuration:
Hydraulic system: S.Y (made in Taiwan)
PLC: Panasonic (made in Japan)
Micro camera: Panasonic (made in Japan)
Electrical components: Schneider (made in France)
Transformer: Panasonic (made in Japan)
Technical parameter:
Model: PF-760
Max. Sheet Size: 760×600 mm
Min. Sheet Size: 450×550 mm
Max. Card Size: 65×90 mm
Min. Card Size: 50×65 mm
Sheet Thickness: 250-800 g/m2
Best Production Speed: 3000 decks/h
Total Power: 7kw
Power: 380V, 50Hz
Dimensions: 3250×4350×1400mm
Total Weight: 3500kg
Model: PF-1040
Max. Sheet Size: 1040×720 mm
Min. Sheet Size: 720×560 mm
Max. Card Size: 90×120 mm
Min. Card Size: 50×65 mm
Sheet Thickness: 250-800 g/m2
Best Production Speed: 5000 decks/h
Total Power: 8.9kw
Power: 380V, 50Hz
Dimensions: 5020×5230×1950mm
Total Weight: 4000kg
