Features and usages:

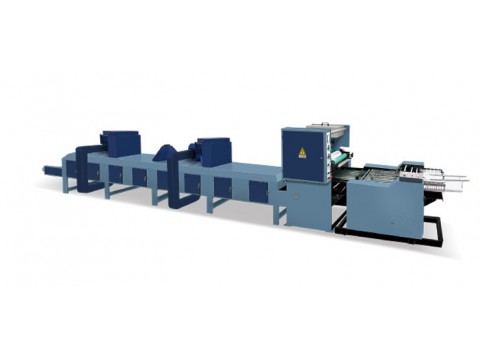

Memo Pad gluing machine is specialized in producing all kinds of notepad, business notepad, N times notepad, stickers and other adhesive to remain free to paste something essential products, it has nice outside looking, stable working, with the company of the LPM series label punching machine and YP Series book flatting machine can produce various shapes of N times notepad and any other notepads for many-time re-post purpose.
Main function:
- Automatic feeding paper system.
- Rollers coating the glue.
- Simply for loading glue and cleaning the roller.
- Rollers will be easily changed.
- Oven with high efficiency fans, high drying efficiency, and the use of multiple temperature control system, according to process requirements, accurate control of the temperature of the oven section.
Technical parameter:
Model: AGST-680
Max. Paper size(W*L): 635*550mm
Min. Paper size: 320*250mm
Max. coating width: 635mm
Speed of coating: 0-25m/min
Oven temperature Max. temperature: 80℃
Heating mode: Stainless steel heating tube
Total power: 9.5KW
Weight: 1500Kg
Machine dimensions: 13800*1320*1500mm+2m extra conveyor belt(optional)
