RFID Wholesale Container Tracking UHF Metal Waterproof OEM Tag RoHS
Click image to view original image
Brand: OPPIOT
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-08-10 16:12
Hits: 41843
Enquiry
Company Detail
  • OPPIOT
  •   [Credit File]
  • Already 0.00 USDSecurity deposit
  • ContactsMichelle Zheng(Mr.)
  • Member [Offline] [Add to my friend] [Send mail]
  • Phone
  • Mobile
  • AreaChina
  • Address2104 Room SANDI International Finance Centre, 249# MingXin Street LongQiao, ChengXiang Putian City Fujian, P.R.China. 351100.


Details

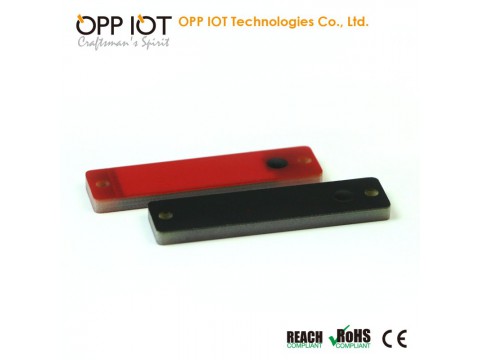

UHF metal Tag Everest series: OPP5213

Functional Specifications:
RFID Protocol: EPC Class1 Gen2, ISO18000-6C
Frequency: (US) 902-928MHz, (EU) 865-868MHz
IC type: Impinj Monza 4QT
Memory EPC 128bits , USER 512bits, TID64bits
Write Cycles: 100,000times
Functionality: Read/write
Data Retantion: Up to 50 Years
Applicable Surface: metal Surfaces
Read Range :
(Fix Reader:ThingMagic FU-M6-E) 		8.0M - (US) 902-928MHz, on metal
8.2M - (EU) 865-868MHz, on metal
Read Range :
(Handheld Reader: OP9908, R2000) 		4.9M - (US) 902-928MHz, on metal
5.1M - (EU) 865-868MHz, on metal
Warranty: 1 Year


Physical Specification:
Size: 52x13mm, (Hole: D3mm)
Thickness: 3.5mm
Material: FR4 (PCB)
Colour: Black
Mounting Methods Adhesive, Screw
Weight: 5.5g


Environmenal Specification:
IP Rating: IP68
Storage Temperature: -40°С to +150°С
Operation Temperature: -40°С to +100°С
Cerifications: Reach Approved, RoHS Approved, CE Approved



PCB UHF metal Tag Atom Series:
Applications:
Instrument tracking, Tool tracking, Medical device management, Source tagging, Surgical instrument  management,
Small asset tracking, IT and laptop tracking, embedded bolt identification, Weapons tracking.

Number IC Type size (mm) Read Range(on metal) :
(Fix Reader:ThingMagic M6-E,
36dBm/4W) 		Read Range(on metal) :
(Handheld Reader: OP9908,
R2000, 33dBm/2W) 		Weight(g) Note
US
(902-928MHz) 		EU
(865-868MHz) 		US
(902-928MHz) 		EU
(865-868MHz)
OPPD5 Alien
Higgs-3 		Diameter
5mmxT4.0mm 		100cm 80cm 60cm 40cm 0.5g
OPP0603 Alien
Higgs-3 		6x3mmxT4.0mm 90cm 80cm 50cm 45cm 0.5g
OPPD6 Alien
Higgs-3 		Diameter
6mmxT4.0mm 		85cm 75cm 45cm 45cm 0.5g
OPP0803 Alien
Higgs-3 		8x3mmxT3.0mm 110cm 120cm 70cm 85cm 0.5g
OPP1004 Alien
Higgs-3 		10x4mmxT3.0mm 135cm 135cm 90cm 75cm 0.5g
OPPD10 Alien
Higgs-3 		Diameter
10mmxT3.0mm 		150cm 130cm  100cm  95cm  0.5g
OPP1307 Alien
Higgs-3 		13x7mmxT3.0mm 250cm 240cm 170cm 140cm 0.7g
OPPD13 Alien
Higgs-3 		Diameter
13mmxT2.0mm 		180cm 150cm 140cm 120cm 0.7g
OPPD16 Alien
Higgs-3 		Diameter
16mmxT3.0mm 		260cm 240cm 160cm 150cm 1.3g
OPP1504 Alien
Higgs-3 		15x4mmxT2.0mm 210cm 220cm 130cm 150cm 0.7g
OPP1808 Alien
Higgs-3 		18x6mmxT3.0mm 145cm 145cm 100cm 90cm 1.2g


PCB UHF metal Tag Dolphin Series:
Applications:
Vehicle chassis and trailer tracking, Unit Load Device identification, Logistics management, Instrument tracking, Pallet tracking,
RTI management, Storage rack identification, IT asset management, Datacenter servers, Healthcare equipment

Number IC Type size (mm) Read Range(on metal) :
(Fix Reader:ThingMagic M6-E,
36dBm/4W) 		Read Range(on metal) :
(Handheld Reader: OP9908,
R2000, 33dBm/2W) 		Weight(g) Note
US
(902-928MHz) 		EU
(865-868MHz) 		US
(902-928MHz) 		EU
(865-868MHz)
OPPD20 Alien
Higgs-3 		Diameter
20mmxT2.0mm 		320cm 280cm 240cm 230cm 1.0g
OPP2208 Alien
Higgs-3 		22x8mmxT3.0mm 450cm  470cm  260cm 300cm 1.3g
OPP2510 Alien
Higgs-3 		25x10mmxT2.0mm 325cm 300cm 250cm 240cm 1.3g
OPP3005 Alien
Higgs-3 		30x5mmxT2.0mm 310cm  280cm 210cm 200cm 0.8g
OPP3310 Alien
Higgs-3 		33x10mmxT3.5mm 420cm 350cm 280cm  250cm 3.0g
OPP3613 Alien
Higgs-3 		36x13mmxT3.5mm 470cm 450cm 270cm 250cm 3.5g
OPP4010 Alien
Higgs-3 		40x10mmxT2.0mm 450cm 420cm 300cm 280cm


PCB UHF metal Tag Everest Series:
 Applications:
Bulk container tracking, Vehicle tracking, Post-paint oven baking, Medical equipment tracking,Tool tracking,
WIP conveying equipment, IT/telecom management, Instrument tracking, Weapons tracking.

Number IC Type size (mm) Read Range(on metal) :
(Fix Reader:ThingMagic M6-E,
36dBm/4W) 		Read Range(on metal) :
(Handheld Reader: OP9908,
R2000, 33dBm/2W) 		Weight(g) Note
US
(902-928MHz) 		EU
(865-868MHz) 		US
(902-928MHz) 		EU
(865-868MHz)
OPP5010 Alien
Higgs-3 		50x10mmxT1.0mm 280cm 250cm  190cm 170cm 1.5g
OPP5213 Impinj
Monza
4QT 		52x13mmxT3.5mm 800cm 820cm  490cm 510cm 5.5g
OPP8008 Alien
Higgs-3 		80x8mmxT3.5mm 650cm 590cm 340cm 310cm 5.0g
OPP9020 Alien
Higgs-3 		90x20mmxT3.0mm 1080cm 1050cm  650cm 630cm  12.0g
OPP7111
(FPC) 		Alien
Higgs-3 		71x11xT0.13mm  Global
900cm 		Global
530cm 		0.2g Off
metal
