Industrial hot air blower with precise control of temperature Industrial hot air blower

Click image to view original image
Brand: huawei
Price: 2125.00USD/piece
Min.Order: 1 piece
Supply 100 piece
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-08-11 15:16
Hits: 54760
Buy
Company Detail


Details

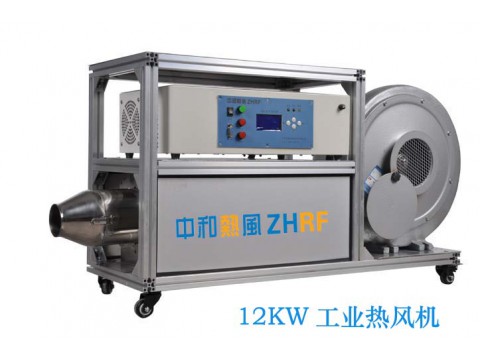

ZHRF1200Q-5 intelligent temperature regulating industrial hot air machine (medium pressure blower, intelligent digital temperature control, liquid crystal display working state, split design), temperature and air volume can be adjusted.It is suitable for heating, drying and dehumidification in food, pharmaceutical, electronic, printing, spraying, cleaning and other industries, as well as heating and temperature rise in large area and large space,or used in assembly line.It has high thermal efficiency, can work continuously, is durable and accurate in temperature control.

main features

separate design

The control system, heating system and blowing system of the machine are separate design and suitable for working in high temperature environment

Air inlet interface

The machine adopts a tight air inlet interface, and the selection performance of the wind source is strong .

The selection of air volume is large and the air volume is adjustable

Users can choose their own air source or self distribution air source according to their needs, which is convenient and practical.The standard configuration of the machine is a 750W medium pressure blower, and the air volume is adjusted by manual air door.

environmental protection

When the machine works, there is no exhaust gas, clean and environmental protection.

Heat insulation of heating machine

Double insulation, strong machine shell makes the machine safe and reliable, and can work in high temperature for a long time.

The temperature can be digital regulate according to the needs. The power output is stable, and it can work continuously for 24 hours at high temperature.

High heat exchange efficiency

Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less,air volume is large.

intelligent control system

LCD

Deviced friendly man-machine interface, menu operation of liquid crystal Chinese characters,simple and convenient manipulation,Real-time display of work status.

Open machine presupposition function

The machine can set the output temperature, the working time, etc.

Intelligent power regulation

According to the air discharge and the air temperature, the heating system intelligently recognizes the output power, and the output is stable.

Temperature control system

The power output is controlled by digital stepless mediation, the temperature is controlled, the output is stable, and the precision of temperature control is 2. When the machine working, we can adjust the temperature without stop.

Parameter memory function

The power, temperature,working time and other parameters of the hot air fan have memory function.

Shutdown delay heat discharge function

In order to prolong the service life of heating core, the machine has the function of stopping time delay and discharging heat. After the machine stops working, the fan will turn off immediately after maximum air volume and blow down for a minute.

Term ordering detection function (preventing fan reversal)

The machine control system is equipped with motor sequence detection function.If the sequence error is wrong, the control system alarm and display the fault on the display screen.

Intelligent security protection function

This machine has phase sequence, Power supply missing phase, fan fault, overheating and overload, temperature sensor failure, safety protection function.In the process of operation, if the above failures occur, the control system will automatically alarm and stop, and indicate the fault source on the display screen, so as to ensure the safe operation of the equipment.

With a remote control interface

It has remote switch interface and RS-485 communication interface to facilitate centralized monitoring.

Optional wind regime

Centrifugal fan   Medium pressure fan   High pressure fan(standard configuration of this machine is 750W medium pressure blower)


Item Parameter
size Overall machine size(L×W×H) 1000×430×580mm
The diameter of the air intake 133mm
Diameter of heating body 133mm
Heat preservation layer Material Double layer heat preservation
heater Name Nickel chromium heating wire
Heater power 12KW
Service life of heated wire >10000H
air intake air blower Standard configuration of this machine is 750W medium pressure blower
Maximum wind volume 1170m3/h
Total pressure 2140pa
Hot air exit diameter 133mm   76mm
maximum quantity of wind 850m3/h
The highest temperature >90℃
Power Supply Power demand 380V
Overall machine power 13KW
weight Overall machine weight 42KG
