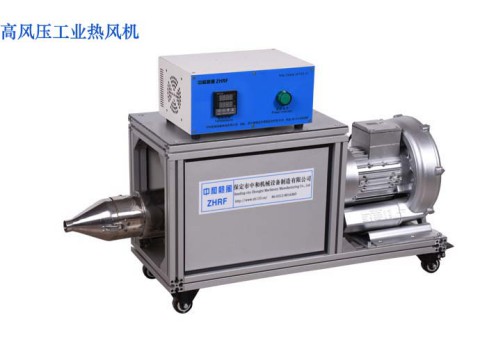

HWIR200G-5高压工业热风机(高压风机,功率可调,数显温度,一体化设计)适用于食品,制药,电子,印刷,喷涂,清洗等行业用于加热,干燥和除湿,特别适用于管道干燥加热。适用于单一操作或装配线使用,热效率高,连续工作不间断,耐用,温度控制准确。
特性:
主要特点
一体化设计
控制系统,加热系统和吹风系统的设计特别适用于加热和干燥管道。
温度控制系统
A solid state relay is used to control the power output and control the temperature, and the output is stable. Digital display temperature.
High wind pressure
The standard configuration is 250W high pressure fan.
Heat insulation
Double layer heat preservation.The strong machine casing makes it safe and reliable,can maintain long-term high temperature work.
Digital display temperature regulation
The air outlet is equipped with a temperature sensor, so that the machine can adjust potentiometer to achieve temperature regulation according to the work needs. It can work continuously for 24 hours at high temperature.
High heat exchange efficiency
Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.
Security
该机器不产生废气,并且是环保的。它可以全年连续24小时运行。
参数表:
分类 |
项目 |
参数 |
尺寸
|
机器整体尺寸(大号 × w ^ × 1H) |
见图 |
出口直径 |
50毫米,25毫米 |
|
入口直径 |
50毫米 |
|
绝缘层 |
材料 |
双层保温 |
加热器 |
名称 |
电热丝 |
加热器功率 |
2KW |
|
电热丝寿命 |
10000小时 |
|
功率调节 |
智能温度调节 |
|
进气口 |
送风机 |
250W高压鼓风机 |
最大风量 |
48m 3 / h |
|
全压 |
12000pa |
|
热风口 |
直径 |
25毫米 |
出风口的最大风量 |
42m 3 / h |
|
出口最高温度 |
100 ℃ |
|
电力需求 |
电力需求 |
220V |
功率 |
2300W |
|
重量 |
重量 |
15KG |
