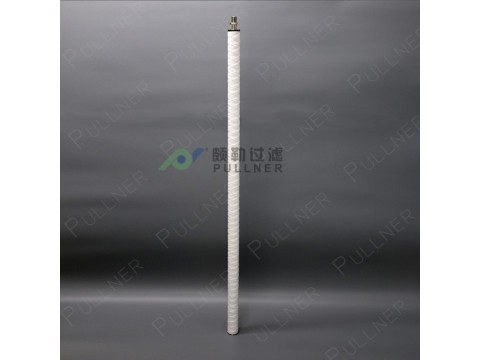

Click image to view original image
|
OD |
50mm, 60mm |
|
|
ID |
25mm, 28mm |
|
|
Length |
70"(1778mm), 60" (1524mm) |
|
|
Filter Media |
Polypropylene, Cotton, Glass Fiber |
|
|
Support Core |
Stainless steel 304/316 |
|
|
Micron |
1μm, 5μm, 10μm |
|
|
Maximum operating temperature |
85℃ |
|
|
Maximum operating differential pressure |
2.45Bar |
|
|
Design Flow Rate |
2.9m³/h-3.2m³/h |
|
|
Connection Type |
Thread |
|
|
Connection Thread |
M33×1.5, M33×2, G1", 1 3/16〃-24 BSW |
|
|
Bottom Thread |
M6, M8, M10 |
|
