An increasing number of applications make use of the ultraviolet (UV) portion of the spectrum. UV wavelengths let surface artifacts appear in greater clarity, and allow visualization of smaller features than those which can be seen using visible light.

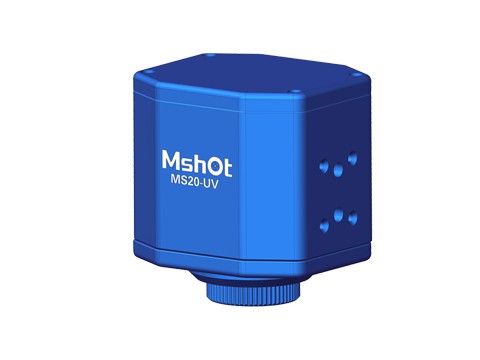

MS20-UV is the latest ultraviolet (UV) camera developed by MSHOT, which adopts high performance high sensitivity sensor and USB3.0 data interface, has the characteristics of good imaging effect and quick reaction speed.Its excellent response in UV and high quantum efficiency make it very suitable for ultraviolet imaging.
Features:
- USB3.0 data interface
- 64MB Image Cache
- good imaging effect and quick reaction speed
Application:
- Search and detection of criminal investigation, fingerprint, footprint, scar , counterfeit notes, counterfeit documents.
-
UV microscopy imaging , semiconductor wafer detection, two-dimensional material research and mask alignment.
-
Electronic, soldering tin, PCB detection, photoresist exposure control.
-
Automobile crack detection, surface detection, UV measurement.
-
UV laser beam analysis, medical image and lithography.
Parameters :
|
Item |
MS20-UV |
|
|
Effective pixels |
2.0 MP |
|
|
Sensor size |
2/3 inch |
|
|
Pixels Size |
5.48μm × 5.48μm |
|
|
frame rate |
Resolution |
frame rate |
|
1920×1080 |
40 FPS |
|
|
Any resolution ROI |
||
|
Scanning Mode |
Progressive scanning / continuous output |
|
|
Shutter |
Global Shutter |
|
|
Exposure time |
20us ‒ 42s |
|
|
Effective gain |
1x – 100x |
|
|
Spectral Response |
200nm-1000nm |
|
|
A/D conversion |
12bit |
|
|
Trigger mode |
Soft trigger |
|
|
Exposure |
Manual/ AUTO/area exposure |
|
|
Image format |
TIF、BMP、JPG、RAW |
|
|
Image Cache |
64MB |
|
|
Software Interface |
DirectShow / TWAIN |
|
|
Operating system |
Windows XP 32Bit；Windows 7/8/10 32/64Bit |
|
|
Data interface |
USB3.0 ，5Gb/s |
|
|
Camera adapter |
C-mount |
|
|
Power supply |
USB 5V |
|
|
Operating environment |
Temp:0～50℃；humidity:10%～90%RH（No condensation） |
|
