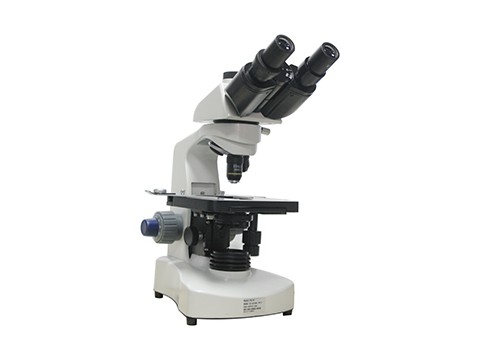

Biological microscope ML10 is a basic optical biological microscope with LED transmitted illumination. It is equipment with trinocular head supports microscope camera. The biolgocal microscope is easy to operate. It's an ideal laboratory microscope for education and widely used in the field of agriculture.
Features
- Equipped with trinocular tube.
- Adopts high resolution optical system.
- LED light source.
- Trinocular tube supports to connect with camera and PC.
- Simple construction.
- 3W LED light source, brightness adjustable.
- Favorableto use in the field of agriculture and education.
- It's cost-effective and easy to operate for school users.
- Get accurate information from the clear image.
Parameters :
|
Eyepiece |
One pair wide field WF10X(FN:18mm) |
|
Objectives |
4X/0.1,10X/0.25,40X/0.65（Spring),100X/1.25（Spring,oil） |
|
Total magnification |
40X~1000X |
|
Observation tube |
Articulated trinocular head，anti-fungus，inclination of 30°，360°rotatable，Interpupillary distance48-75mm |
|
Nosepiece |
Intilted quadruple，anti-fungus |
|
Condenser |
Abby condenser N.A=1.25 with aperture iris diaphragm, filter and gear adjustment system |
|
Focus system |
Coaxial coarse and fine adjustment, moving range 24mm, Minimum graduation in fine movement: 2μm |
|
Stage |
Double layer stage, size 132X142mm, moving range 75mmX40mm |
|
Illumination |
220V 3W high power LED cold lighting with brightness adjustment, long working life |
|
Voltage |
AC220V（±10%），50HZ |
