Quick Information
- Brand Name:Zhonghui
- Place of Origin:China
Description
Brief Description :

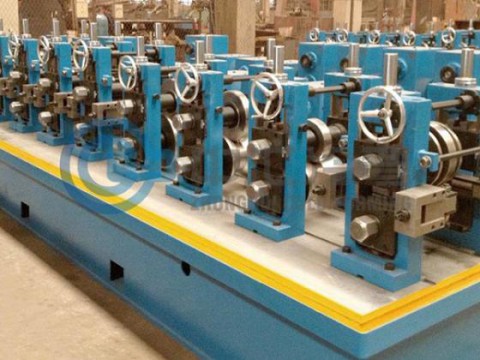

Cold forming section steel production line is used to roll and form cold & hot rolling steel into all kinds of open cold-forming sectional steel like C-shaped steel, U-shaped steel, L-shaped steel and guard fence plates of freeway, etc. This line can also produce the different sizes of steel sheet piling used in the tunnel construction and foundation field. At the same time, it can work matching with the relative punching machine to satisfy more different requirement of clients.
Main technical parameters：
| Model | Material of strip steel: carbon steel of σb≤580Mpa, σs≤350MPa and low alloy steel of ≤X80 | Production speed（m/min） | |
| Width of strip steel（mm） | Thickness of strip steel（mm） | ||
| LW300 | 300 | 1.0~4.0 | 10~40 |
| LW400 | 400 | 2.0~5.0 | 10~30 |
| LW600 | 600 | 2.0~6.0 | 6~25 |
| LW800 | 800 | 3.0~8.0 | 6~20 |
| LW1000 | 1000 | 3.0~10.0 | 6~15 |
| LW1200 | 1200 | 4.0~12.7 | 6~15 |
| LW1600 | 1600 | 6.0~16.0 | 6~15 |
| LW2000 | 2000 | 6.0~18.0 | 6~15 |
Price
- Delivery Port :Tianjin
Packaging & Delivery
- Packing :By carton box or Wooden box according to different
- Delivery Lead Time :3-7 working days according to different quantities
- Supply Ability :100/sets per month
