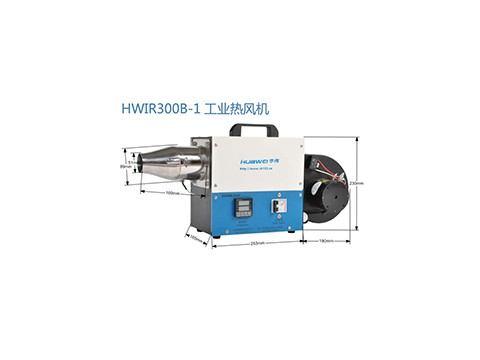

HWIR300B-1 industrial hot air blower is suitable for heating, drying, heating, drying and heat shrinkage of food, pharmacy, electronics, printing, spraying and cleaning industries. It can work continuously for 24 hours and intelligently control temperature. Small size, light weight, easy to move, high thermal efficiency, durable and accurate temperature control.
Characteristic:
Power regulation
The temperature control meter intelligently adjusts the output power according to the set temperature.
Insulation
Multi fiber insulation cotton insulation, strong chassis safe and reliable, can maintain high temperature for a long time.
Digital display temperature regulation
The outlet is equipped with a temperature sensor, so that the machine can adjust the temperature according to needs. The maximum use temperature is 395 ℃. (need to change to 25mm outlet), the highest temperature is 160 ℃ when the normal air volume.
Temperature control system
The temperature is controlled by PID/SSR, the control precision is high, and the reaction is sensitive. The accuracy of temperature control is + 1℃.
High heat exchange efficiency
Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.
Security
It has overheating overload protection, power cut protection device, fully guarantee the safety of the equipment, do not produce exhaust gas, and meet the environmental protection.
Special explanation：The standard configuration of this machine is suitable for parallel assembling of air outlet and water level. If vertical assembling is required, please communicate with the manufacturer in advance and explain. (matching: outlet and horizontal plane: Vertical installation up and down)
Parameter table:
|
Classification |
Item |
Parameter |
|
Size |
Overall machine size |
520×160×230mm |
|
Air outlet |
The diameter is 89mm，50mm，25mm（ Selection） |
|
|
Insulation layer |
Texture of material |
Multi fiber insulation cotton |
|
Heater
|
Name |
Electric hot wire |
|
Heater power |
3KW |
|
|
Power regulation |
Intelligent adjustment |
|
|
Heating wire life |
100000 hours |
|
|
Blower
|
Blower |
50W |
|
Maximum wind volume |
198M3/H， the actual air volume is about 100M3/H |
|
|
static pressure |
298pa |
|
|
Temperature
|
Air temperature at maximum air volume |
>160℃ |
|
|
Maximum use temperature |
<395℃ |
|
Power Supply |
Power demand |
220V two-phase |
|
Power |
3050W |
|
|
Weight |
Weight |
10KG |
