ZHRS300Z-25 table type heat shrinkable tube heating air gun, suitable for heat shrinkable tube heating and contraction, air outlet 360 degree rotation, suitable for many working environments.Because of its small volume and light weight, it is easy to move.And it has high thermal efficiency,so it can work continuously without interruption,it is durable and has accurate temperature control.It can work continuously for 24 hours and Its power can be adjusted.
Apply to：
1 Connection and contraction of PE heat shrinkable tube, PVC heat shrinkable tube and double wall heat shrinkable tube with glue.
2 Thermal shrinkage of PVC pipe.Heat shrinkable tube of car harness.
3 Thermal contraction of capacitors, batteries, wire terminals, heat shrinkable sleeves / membranes, etc.
Characteristic:
Outlet direction adjustment
The air outlet has 360 degree rotation in all directions, and is suitable for various working environments.
Double layer heat insulation
Design of sturdy double stainless steel shell,it is safe and reliable when used,can keep high temperature work for a long time. Digital regulation can be carried out to adjust the temperature according to the needs.Power output stability.
Intelligent control system
LCD
Deviced friendly man-machine interface, menu operation of liquid crystal Chinese characters,simple and convenient manipulation,Real-time display of work status.
Open machine presupposition function
The machine can set the speed of the fan, the output temperature, the working time, etc.
Temperature and wind speed regulation
When the machine working, we can adjust the temperature, the speed of the fan without stop.
Intelligent power regulation
According to the air discharge and the air temperature, the heating system intelligently recognizes the output power, and the output is stable.
Temperature control system
The power output is controlled by digital stepless mediation, the temperature is controlled, the output is stable, and the precision of temperature control is 2.
Parameter memory function
The power, temperature, fan speed and other parameters of the hot air fan have memory function
Shutdown delay heat discharge function
In order to prolong the service life of heating core, the machine has the function of stopping time delay and discharging heat. After the machine stops working, the fan will turn off immediately after maximum air volume and blow down for a minute.
With a remote control interface
With remote switch interface and RS-485 communication interface, it is convenient to realize centralized monitoring
Security
Fault detection function of fan:
Real-time detection of fan work by intelligent temperature control system,When the blower is abnormal, the machine will automatically alarm and stop.This machine is equipped with anti dry burning protection function,automatic alarm stop when the heating system is abnormal and high temperature.
Work time presupposition function:
This machine has working time timing function and can be set arbitrarily between 0~5000 minutes.
Safety protection output and safety protection output make the machine work safely.
High heat exchange efficiency
Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.
Security
It has overheating overload protection, power cut protection device, fully guarantee the safety of the equipment, do not produce exhaust gas, and meet the environmental

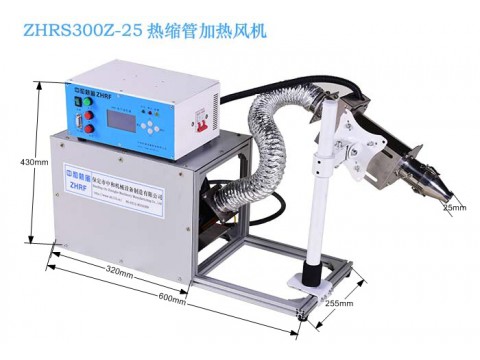

Overall machine size See picture
The size of the air outlet 50mm 25mm
Heat preservation layer Material double insulation
Heater Name Resistance heating
heat energy 3KW
Temperature Control Method Intelligent temperature adjustment
Service life of heated wire 100000h
Blower Blower 50W
Maximum wind volume 138M3/H，the actual air volume is about 80M3/H
Static pressure 218pa
Maximum air flow outlet temperature rise >395℃
Maximum affordable temperature <430℃
Power demand 220V two-phase
Overall machine power 3050W
Overall machine weight 10KG
