Professional cassava starch production machine process include the processing steps as below:
Fresh cassava cleaning and washing, cassava crushing, starch slurry separation, starch slurry washing, refining and concentration, liquid starch dewatering, wet starch drying, sieving and packing.
All machines used for cassava starch production process operate can be manufacturered by Doing Company, which is a professional and reliable casssava processing machiner manufacturer and supplier.

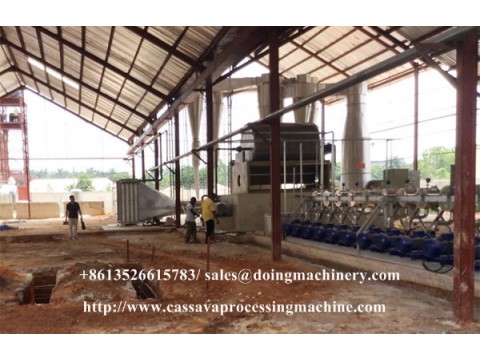

Details cassava starch production process in the cassava starch factory:
Step 1 cassava cleaning
Cassava will be transported by conveyer to dry sieve. Then dry sieve rotates its inner spirals to push cassava moving forward. In the process, some peels and dirt things of cassava will be cleaned.
Step 2 cassava washing
Next, cassava paddle washing machine will rotate its paddle, then cassava which are flow in the counter water current will be cleaned. This is the cleaning step of the cassava starch production process.
Step 3 cassava cutting
After that, the clean cassava will be transported to cassava cutting machine. The machine will cut cassava into 3-5cm pieces. It consists of foundation, main frame, cutter, motor and drive system. The step can relieve some pressure of the next machine.
Step 4 cassava crushing
For the starch extraction from cassava, those which have been cutted by cutting machine will be crushed by rasper. The machine has a high extraction rate. It is a bidirectional rasper, which cause high efficiency of the production of cassava starch. The machine can crush cassava into a kind of slurry.
Step 5 cassava starch extraction
Centrifugal sieve and fine fiber sieve will be used to remove fiber, cell liquid and some dirt out of cassava starch slurry. The two machines have large capacity and the two all have automatic front and back washing machine, which guarantee good operation and ensure high-efficiency operation of equipment for tapioca starch production process
Step 6 cassava starch dewatering
Then peeler centrifuge is used to dehydrate cassava starch slurry. It is a solid-liquid separation equipment. The machine can shorten separating time and increase production capacity by 50%.
Step 7 cassava starch drying
Cassava starch will be dried by the professional starch dryer. The machine adopts negative system and cooling system, so the drying time is very short. In order to guarantee the production of cassava starch, air flow flash dryer should be operated in advance.
Step 8 cassava starch sieving and packing
After drying, cassava starch will be sieved by starch sieving machine. soon cassava starch will be by automatic starch packing machine.
If you tell us your requests,condition and your budget, we can offer you a detail cassava starch production process business plan, all details you can discuss with our engineers. Any questions of how to extract cassava starch, contact us freely from whatsapp: +86 135 2661 5783 / sales@doingmachinery.com
