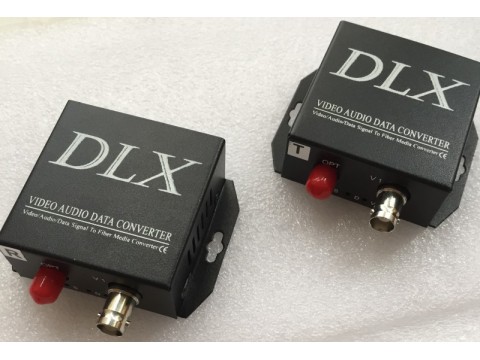

DLX-DVOPS series of products provide uncompressed high quality transmission systems for 1 channels of digitalized analog video, one reverse or forward or bi-direction data over one single mode or multimode optic fiber. Super mini in size, and is very good to install in shield of speed dome camera or other kind cameras, or connect to the connector of video output directly, save the cost of connection between camera and video fiber transmitter. In the center room, the video fiber receiver is card type and can been installed in 19inch standard chassis, very easy to manage.
APPLICATIONS
● High Way & Toll Station Surveillance
● Public Security Surveillance
● Surveillance and cable TV system
● Intelligent traffic monitoring system
● High Quality Video Conference
● Broadcast and TV program transmission
● Long-distance multimedia teaching
● Industrial Closed Circuit Television Surveillance
FEATURES
● One multimode or single mode fiber
● Adopts Original TI chip, Industry grade components , ESD protection design to ensure long time stable running
● +12V DC power supply, no need extral power supply
● One video transmission or one video and one data transmission
● Large-scale Proprietary IC Core
● Auto PAL/NTSC/SECAM Compatible
● Indicators for Power Supply, Video, Optic-link and Data-loop
● Free from In-field Adjustment
● Flexible and Easy Mount
● Protection against lightening strike and surge
● Transmission distance: 2KM(multi-mode),20km,40km,60km,80KM,100km optional(Single-mode)
SPECIFICATIONS
● Video
Channel : 1
Connector: BNC
Bandwidth: 8MHz
Quantization: 10 bits
DG: 1% typical
DP: 1 typical
SNR: >67dB
● Data
Interface Type: RS-232/485/422, Manchester, Biphase
Operation Mode: Full-duplex/Half-duplex
Data Rate: DC-384Kbps/DC-2Mbps
BER: <10E-9
Connector: RJ45/ Terminal Plug with screw clamps
● Environmental
Operation temperature: -40℃~+75℃
Storage temperature: -40℃~+85℃
Relative humidity: 0-95% Non-Condensing
MTBF: ≥10e5 hours
Power Supply: DC 12V
Power consumption <2W
● Physical Dimensions: 62(L) x 52(W) x 22(H)mm, Aluminum-alloy case
