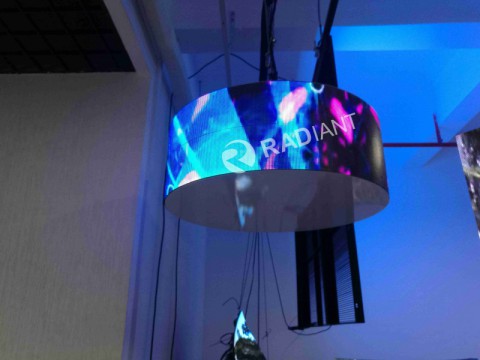

FLEXIBLE LED SCREEN-NF030F Flexible --- It is capable of being flexible, convex, concave even twisted for to be used for any indoor conventional applications. Low cost --- Cost effective and high performance. Super Thin --- It is 14mm depth without power supply backside screen. Lightweight --- 0.52kg/1.14lbs per tile to save labor and transportation. Low heat --- Puts power supply Max 20m away and keep screen lower heat with screen' long lifespan. Integration System –- Separate power supply system and data transmission system to central management. Easy Installation --- Full backup magnets system to attach on any mental sheet. Multifunction --- A small tile in hand to meet your Do-it-Yourself demands. |
|||||||
|
Packaging Details:6pcs or 8pcs cabinets in one flight
case. Port:Shenzhen Lead Time :20-30 days |
|||||||
| Model No. | NF030F | |
| Part Number | P3 | |
| Pixel Pitch | 3mm | |
| Resolution(per LED Panel) | 48 x 24 pixels | |
| Pixel Density | 10,322 per sq. foot(111,111 per sq. meter) | |
| Pixel Density (Pixels per LED Panel) | 4608 | |
| LED Panel Size (W x H) | 11.34"× 5.67"*0.28" (288mm*144mm*7mm) | |
| LED Panel Weight | ~0.86 ld (0.39 kg) | |
| LED Configuration | SMD2020, 3-in-1 Black face LEDs | |
| Brightness (non-calibrated) | 0- 1200 nits (adjustment) | |
| Viewing Angle (Horizontal/Vertical) | 160°/160° | |
| Color Space | 92%, NTSC | |
| Color Uniformity | 0.95 | |
| Contrast Ratio | 2,500:1 | |
| LED Refresh Rate | 1,920 Hz | |
| Power Consumption, Maximum (watts) | 20w/Tile (480w per sq. meter) | |
| Power Consumption, Typical (watts) | 8w/Tile (190w per sq. meter) | |
| Environment /Application | Indoor; fixed | |
| Installation, Service | Front &back | |
| Line Voltage | 100-240Volts AC, 50 & 60Hz | |
