Flat Pack Foldable and Expandable Container House for Granny

Flat Pack Foldable and Expandable Container House for Granny

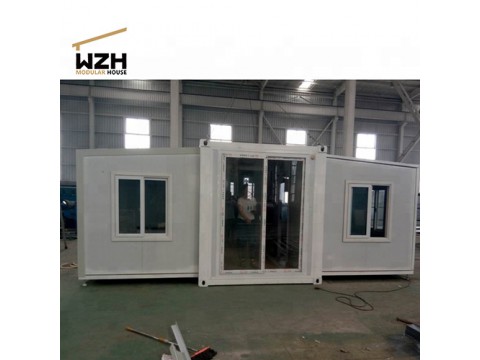

Expandable Container House is just a ordinary shipping container that is expanded into a home dimension. It is convenient to be assembled and movable, the most important is supplying a wider space for mobile living. It equipped with a lot of windows that provide enough sunlight and super outside view. We also can add terrace as sitting area where will be a perfect place for relaxation.

All the water and electrical systems will be finished in advance in our factory, we also can customize that as your request. This can help you to save much time and cost to find professional workers to do that.



Install process



Specification

Size	Closed: 2200*5850*2530mm Open: 6400*5850*2530mm
Layout we can supply	1.One big room for office or meeting room or classroom 2.One big room with one bathroom 3.One big bedroom with one living room, one kitchen and one bathroom 4.Two bedroom with one living room, one kitchen and one bathroom 5.Three bedroom with one living room or one kitchen, one bathroom Four bedroom with one bathroom
Snow load	150kg/m2
Floor load	400kg/m2
Roof load	200-250kg/m2, extreme testing can be 350kg/m2
Wind speed	110km/h
Seismic grade	8
Supporting foot	10
Usable area	37.44m2
Loading	2 sets houses load in one 40’HQ

Advantages of expandable container house:

1. Easy install: can be finished in one hour by 4 workers.
2. Long lifespan: 10~20 years, also can be folded and assembled several times.
3. Environment friendly: no construction waste and all the materials can be recycled, belongs to low carbon building.
4. Lower price: save at least 50% cost compared to traditional construction.
5. Easy transportation: can be loaded in the container directly and light weight to load and unload conveniently.
6. Easy to be luxury: by adding exterior wall decoration materials, roof, and deck to make it more beautiful.

Main material list

Steel frame
1	Steel frame	2.5mm and 3.0mm Steel Plate Blending and square pipe
Wall panel
1	External Wall Panel	50mm EPS/PU Steel Sandwich Panel
2	Internal Wall Panel	50mm EPS/PU Steel Sandwich Panel
3	Roof Panel	50mm EPS/PU Steel Sandwich Panel
4	Strengthen Roof Panel	0.5mm Color Steel Plate
5	Exterior wall material (option)	PVC cladding or PU carved metal board
Floor
1	base Flooring	1220*2440 PLOYWOOD board
2	Whole Floor	PVC mat
Accessories
1	Wall Slot	0.3mm Color Steel Blending
2	Outside Corner Cover	0.3mm Color Steel Blending
3	Accessories	PVC floor line, waterproof glue, glass glue, rivet, etc
Door and Windows
1	Entrance door	Aluminum sliding glass door
2	Inside door	Wood door for bedroom Plastic steel door for bathroom
3	Window	8 Pcs double glass windows
Facilities (Chinese Standard)
1	Toilet	1 Pcs
2	Wash Basin	1 Pcs
3	Shower Room	1 Pcs
4	Kitchen Cabinet	1 Pcs
Electrical Fittings
1	Wires with PVC in the wall AS/NZ Standard	Australia/NZ Standard Fittings or the other country standard
2	Sockets
3	Switches



Packaging

Loading
