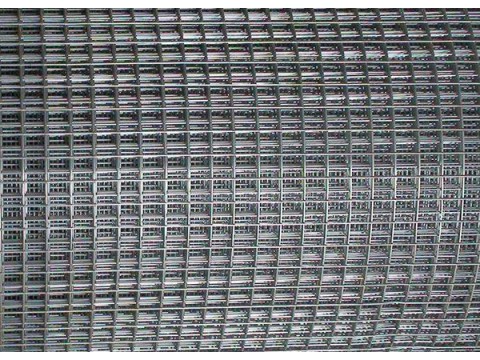

Welded Wire Mesh
Galvanized Welded Wire Mesh
|
Galvanized Welded Wire Mesh |
|||
|
Opining |
Wire Diameter |
||
|
Inch |
mm |
BWG |
mm |
|
1"x1" |
25mmx25mm |
14#-11# |
2.0mm-3mm |
|
2"x1" |
50mmx50mm |
14#-8# |
2.0mm-4mm |
|
2"x2" |
50mmx50mm |
14#-8# |
2.0mm-4mm |
|
3"x2" |
75mmx50mm |
14#-6# |
2.0mm-5mm |
|
3"x3" |
75mmx75mm |
14#-6# |
2.0mm-5mm |
|
4"x2" |
100mmx50mm |
14#-4# |
2.0mm-6mm |
|
4"x4" |
100mmx100mm |
14#-4# |
2.0mm-6mm |
|
5"x5" |
125mmx125mm |
14#-4# |
2.0mm-6mm |
|
6"x6" |
150mmx150mm |
14#-4# |
2.0mm-6mm |
|
Note: Special specifications can be customized. |
|||
PVC Coated Welded Wire Mesh
|
PVC Coated Welded Mesh |
||
|
Opening |
Wire Diameter |
|
|
In inch |
In metric unit(mm) |
|
|
1/4"x1/4" |
6.35mx6.35mm |
21,22,23,24,24,25 |
|
1/2"x1/2" |
12.7mmx12.7mm |
16,17,18,19,20,21 |
|
3/4"x3/4" |
19mmx19mm |
16,17,18,19,20,21 |
|
1"x1" |
25.4mmx25.4mm |
15,16,17,18,19,20 |
|
Technical Note: 1.Standard roll length:30m;width:0.5m to 2.5 2.Special sizes avaliable at request 3.Packing:in plastic in rolls .Custom packing available at reques |
||
The product has a variety of processing methods: can be welded after the first galvanized or galvanized after the welding method, and a variety of surface treatment, including welded wire mesh galvanized, PVC coated welded wire mesh to meet a variety of needs.
Welded wire mesh use of advanced mechanical and professional technical team to customize and produce good quality welded wire mesh.
Wire mesh mesh with four layer packaging protection, neatly placed in the transport vehicle, so that products can reach the destination safely.
Welded wire mesh selection of high-quality low-carbon steel wire, through the automation of precision and precision mechanical processing after forming, the use of zinc surface treatment process, the net surface is smooth and tidy, solid structure evenly.
