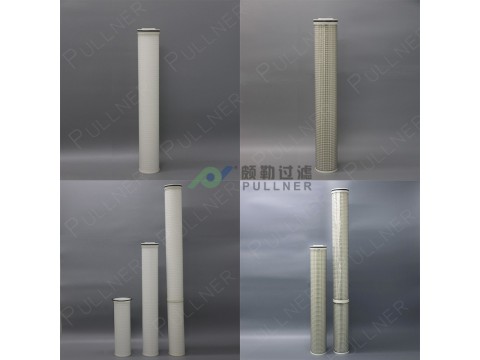

Click image to view original image
|
Micron |
1μm, 5μm, 10μm, 15μm , 20μm, 40μm, 70μm, 100μm |
||||
|
OD |
6” (152mm) |
||||
|
Length |
20"/40"/60" |
||||
|
Maximum operating temperature: |
Pleated/melt-blown pp: 82℃ |
||||
|
Pleated glass fiber: 121℃ |
|||||
|
Maximum operating differential pressure (Inside to outside flow direction) |
Pleated/melt-blown pp: 3.44bar@82℃ |
||||
|
Pleated glass fiber: 3.44bar@121℃ |
|||||
|
Suggestion pressure for filter replacement |
2.5Bar@20℃ |
||||
|
Suggestion design flow |
40": 70m3/h |
||||
|
60": 110m3/h |
|||||
|
Model |
Filter Media |
Support/Drainage |
End Caps |
Seals Material |
|
|
PP |
Pleated Depth Polypropylene |
Polypropylene |
Glass Fiber Reinforced Polypropylene |
NBR、EPDM、Viton |
|
|
Melt blown Polypropylene |
|
Glass Fiber Reinforced Polypropylene |
|||
|
GF |
Glass Fiber/Polyester |
Polyester |
Glass Fiber Reinforced Polypropylene |
||
