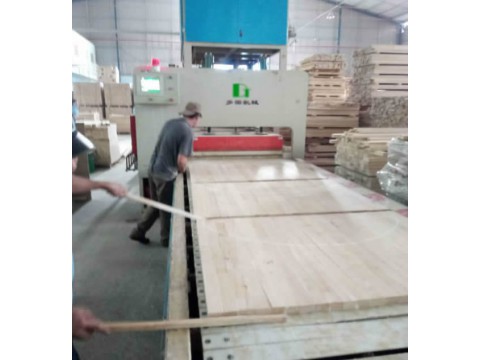

High frequency Wood Board Jointer Press Machine with Belt Conveyor
Product Application
High frequency conveyor belt board jointing machine applied to a variety of specifications of jointing of furniture plate, jointing of integrated plate, wooden door sealing side, jointing of L-type door lines and so on. Use touch screen operation, PLC automatic control simply and easily. Adopting conveyor belt automatic feeding and discharging, It can joint continuously infinite long plate, reduce artificial, save time and effort.
The electrical components of it are imported, the quality is reliable and it is running stable after debugging and strict inspection.
Main Features
High heating rate and efficiency
Uniform heating
Easy control of heating process
Being heating selective
Biostimulation, sterilization and electrotherapy
Automatic production, low labor
Environmental protection, dust and smog free
Safe, no radiation
| Model | GPB-56-DT-L | GPB-80-DT-L |
| Control Mode | PLC touch screen program automatic control | |
| Minimum Gluing Size(mm) | 1220*2440 | 1220*4500 |
| Maximum Gluing Thickness (mm) | ≤80 | ≤80 |
| Total Pressure (Ton) | 56 | 80 |
| HF Output Power (KW) | 20 | 50 |
