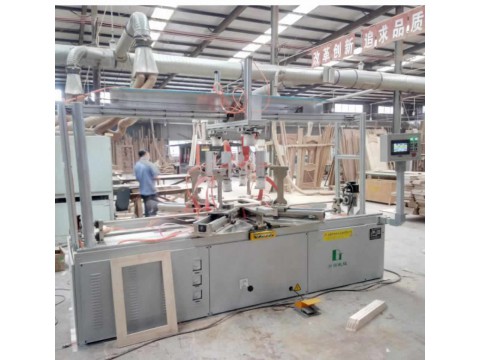

High frequency( Radio frequency) precision frame assembly machine
Character
1, High precision : high precision servo motor (much more precise than normal motor or stepper motor).
2 ,High efficiency: Human interface control panel, PLC control, speed of motor is adjustable, instant size adjusting, high frequency heating, the whole process just needs 10s.
3 ,Convenient: User only need to adjust the curing size on control panel, machine will act automatically.
4 ,Safe: Strict safety protection for human and machine
5. Custom: It can be customized according to your requirement.
Specification
Model GZK-1400-DT GZK-2000-DT GZK-2800-DT
Size (mm) 2800*1150*1620 3560*1150*1620 3820*1150*1620
Weight (Ton) 0.8 1 1.5
Working Size (mm) 1400*700 2000*800 2800*1000
Control Mode PLC, touch screen control
Solidify Time (second) 5-20
Electrical Components Omron, Siemens, Eaton etc.
