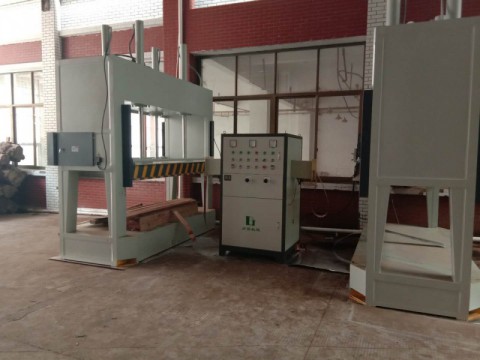

HF( RF) bending wood press machine
Product Application
It also called High frequency press, High frequency hot press, bent wood press, bending wood press, laminated wood High frequency plywood bending machine, High frequency curved plywood press.
It combined the HF heating with the hydraulic press, then bending the material into the required shape.
It is used for Bent plywood chair Bent or arc plywood furniture or bed and Other bent plywood products like cloth hangers, surface of musical instrument, etc.
Main Features
1) Fast and uniformly heating2) Bending shape is stable, not easy to change de-lamination
3) High frequency power is a selectively heating power, it concentrate only on water or glue, wood not consume HF power, so HF heating is effective and power saving
4) Wooden or MDF mould used, much economic than metal mould if shape is frequently changed.
| Model | GYJ-80-DT | GYJ-90-DT | GYJ-160-DT | GYJ-180-DT | GYJ-200-DT |
| Type | 1 drive 1, 1 drive 2, 1 drive 3, 1 drive 4 | ||||
| Curving Direction | Single, triple, multi | ||||
| HF Output Power | 10kw, 20kw, 30kw, 50kw | ||||
| Total Pressure | 80T | 90T | 160T | 180T | 200T and over |
| Hydraulic System | Qingtian from Taiwan | ||||
| Electrical Components | Omron, Siemens, Eaton | ||||
| Application | Sofa, dinning table and chair, curving furniture, wooden shoes, curving musical instrument | ||||
