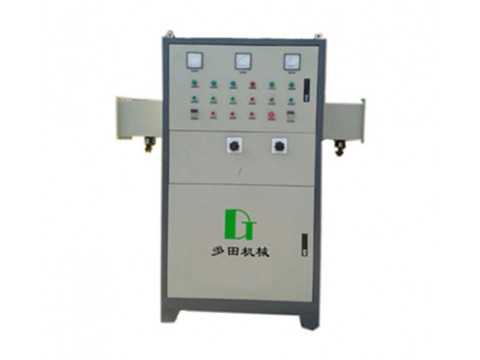

High frequency( Radio frequency) generator
High frequency generator is the core of the HF Machinery. It is an energy converter which can transform the industrial AC 380V electricity into a high-frequency electric field. It has been widely used in the Multi-layer board and MDF board gluing, Wood board jointing and gluing, Moisture drying, tobacco, grain worm killing, environmental protection and printing, etc.
Working Principle
HF Dielectric Heating
Dielectric is known as insulator, such as timber, plastic, grain, rubber, glass epoxy, glue agent, etc.
HF dielectric heating is to put dielectric in HF electric field, then the intermolecular friction starts to generate heating, finally reach the requirement.
Specification
| Model | GP-6 (13/27)-DT |
| Power Supply | AC 380V 50Hz,3 phase 4 wire |
| Frequency(MHZ) | 6.78, 13.56, 27.12 |
| Output Power (KW) | 2, 5, 8, 15, 20, 30, 50 |
| Output Mode | Single, Double, Multi-out |
| Output Communication Mode | Pneumatic, Electromagnetic |
| Notes | As your requirements,we could customize specifications for you |
Character
High heating rate and efficiency
Uniform heating
Easy control of heating process
Being heating selective
Biostimulation, sterilization and electrotherapy
Automatic production, low labor
Environmental protection, dust and smog free
safety and health at work, no radiation
Top electrical components, such as Omron, Siemens, Eaton, etc.
