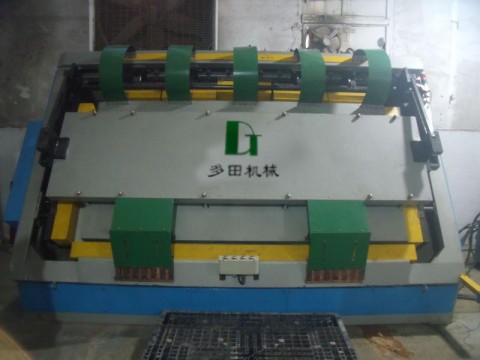

Slope type wooden board joining and frame joining machine clamp carrier
Product Application
High frequency slope board and frame assembly machine apply to wooden board splicing, solid wood door and window and frame assembling, wooden batten edge gluing, L-type lines. It is widely used in the doors, cabinet doors, furniture and other industries.
Main Features
High heating rate and efficiency
Uniform heating
Easy control of heating process
Being heating selective
Biostimulation, sterilization and electrotherapy
Automatic production, low labor
Environmental protection, dust and smog free
Safe, no radiation
| Model | GXPZ-960-DT | GXPZ-1220-DT | GXPZ-3000-DT |
| Control Mode | PLC touch screen program automatic control | ||
| Max Working Size(mm) | 960*2460 | 1220*2440 | 1220*3000 |
| Splicing Thickness (mm) | 8-100 | ||
| Upper Pressure (Ton) | 6 | ||
| Back Pressure (Ton) | 25 | 30 | |
| Lateral Pressure (Ton) | 6 | ||
| Weight (Ton) | 5 | 5.5 | 6 |
| HF Power (KW) | 20 | ||
