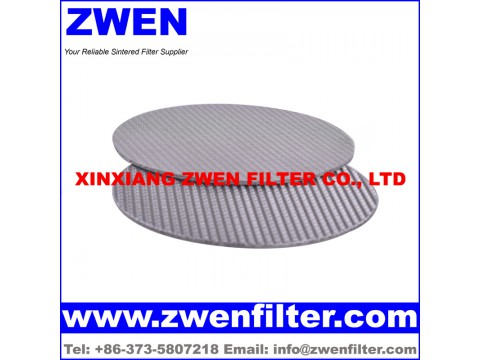

Sintered Mesh Filter Disk

Sintered Mesh Filter Disk Technical Parameter
Raw Material: SS 316L, SS 304
Filter Media: ZWEN Sintered Mesh
Filter Rating Range: 0.5 Micron ~ 2000 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Diameter: ≤ 500 mm
Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others

Sintered Mesh Filter Disk Feature
1. Sintered mesh filter disk has uniform pore size distribution
2. Sintered mesh filter disk is good for backwash
3. Sintered mesh filter disk has high mechanical strength
4. High temperature resistance
5. High filter efficiency
6. High corrosion resistance
7. Long service life

Application
Membrane filtration, polyester filtration, polymer filtration, sensor part, inductor part, detector part, survey meter part, pressure release device part, protein analysis part, polymer extrusion device part, PEM electrolyzers part, HPLC columns part (in-line filter, prep inline filter, precolumn filter)
