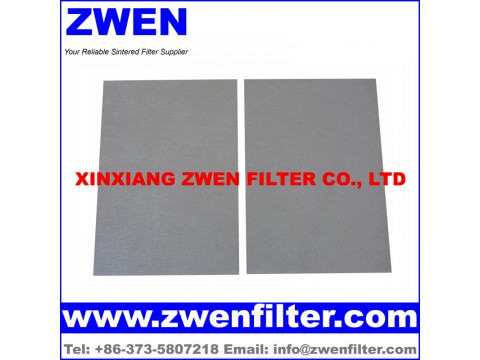

Sintered Fiber Felt

Sintered Fiber Felt Technical Data
Raw Material: SS 316L
Filter Rating Range: 1 Micron ~ 100 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Length: ≤ 500 mm
Width: ≤ 500 mm
Thickness Range: 0.2 mm ~ 1 mm
Number of Layers:
1. One layer (Sintered Fiber Felt)
2. Two layers (One Side Protective Wire Mesh/Sintered Fiber Felt)
3. Three layers (One Side Protective Wire Mesh/Sintered Fiber Felt/One Side Protective Wire Mesh)

Sintered Fiber Felt Feature
1. Sintered fiber felt has high dirt holding capacity because of three dimensional fiber structures
2. Sintered fiber felt has high porosity because of different fiber layers density gradients
3. High filter efficiency
4. High temperature resistance
5. High corrosion resistance
6. Washable and Cleanable
7. Long service life
8. Easy to be pleated
9. Easy to be welded, fabricated
10. Easy to be cutted into different shapes, such as circular, sheet

Application
Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration
