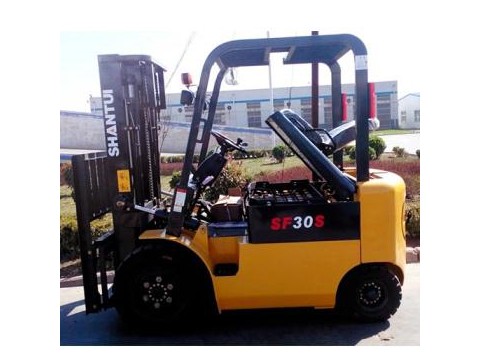

3 Ton Electric Forklift with large battery. The electric motor has DC motor and AC motor. Forklift Truck controller chooses American Curtis or Zapi. The forklift battery has big capacity. The forklift charger can be designed with different voltage meeting different countries requirement. The forklift truck mast has duplex and triplex with height 3 meter, 4 meter, 4.5 meter, 5 meter, 5.5 meter and 6 meter. Forklift tire has air and solid two models. 1.5 t mini electric forklifts can be installed with different attachments: side shifter, positioner, bale clamp, paper roll clamp, and others
Why choose us?
1.Best quality-Shantui has long history & One of China biggest forklift factory.
_SHANTUI is world top 50 construction machienry manufacture.
_China famous brand forklift
2.Advanced technology- Copperate with Japan Komatsu for over 20 years.
The machine has following advantages:
Low noise: Noise <82AB (A)
Easy maintenance: battery cover is with gas-filled cylinder, the open range can be 78-90 degree
Safety: the cylinder is with dual safety system:. Lowing safety valve &lowing limited valve
LCD digital display can fast monitor truck status
The electric F/R lever with neutral safety start system
Forklift details
3 Ton Battery Forklift specification
| General | Model | SF30S | ||
| Load capocity | 3000 | kg | ||
| Load center | 500 | mm | ||
| Power type | Battery | |||
| overall dementions | overall length with/without forks | 3545/2470 | mm | |
| overall width | 1295 | mm | ||
| overall height | 2135 | mm | ||
| overall height fork lowered | 2065 | mm | ||
| overall height fork raised | 4272 | mm | ||
| max.lifting height | 3000 | mm | ||
| free lift height | 80 | mm | ||
| min.under-clearance(frame) | 140 | mm | ||
| wheel and tires | front overhang | 495 | mm | |
| wheel base | 1585 | mm | ||
| rear overhang | 392 | mm | ||
| lateral fork adjustment(outside) | 250/1090 | mm | ||
| front tread | 1000 | mm | ||
| rear tread | 980 | mm | ||
| performance | min.turning radius | 2135 | mm | |
| Mast tile angle | 6/12 | o | ||
| battery voltage/capacity | 80/500 | V/Ah | ||
| travel speed with/without load | 15/18 | Km/h | ||
| lifting speed with load | 260 | mm/sec | ||
| Max.gradeability | 13 | % | ||
| weight of battery | 1331 | kg | ||
| tire | front | 28×9-15-14PR | ||
| rear | 18×7-8-14PR | |||
| sevice weight | 4850 | kg | ||
3.Service-SHANTUI service everytime everywhere.
4.Spare parts-all parts of our products that you need can be provide.
5. Certificate: CE ISO9001, SGS COC, CO GHOST...
6.Market: Goods have been sold to over 140 countries and regions.
7.Package-can be shipped in container or transport by truck
