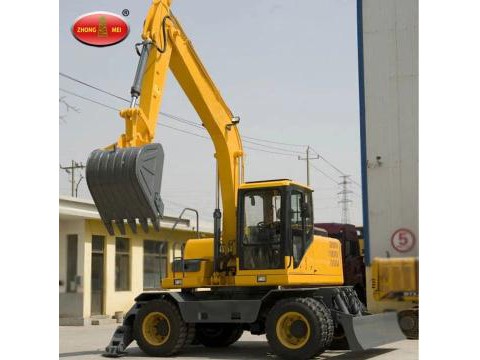

Introduction of JHL135 13.5 Ton Heavy Hydraulic Bucket Wheeled Excavator
We are manufacture of railroad machinery include Wheeled Excavator Machine, Mini Digger,Bucket Wheel Excavator ,Hydraulic Excavator,Excavator Machine and Road Roller.
1. JHL135 13.5 Ton Heavy Hydraulic Bucket Wheeled Excavator adopting world famous brand engine, with strong driving force, low noise, low oil consumption, and more reliable.
2. Adopting energy saving hydraulic system, main hydraulic parts using original world famous brand to guarantee the good quality and work performance. Low energy consumption, fast response speed, precision control, small impact, can keep strong mining capacity and excellent operation efficiency.
3. Using high performance radiator, unobstructed air flow, fast flow speed, good hear dissipation effect, stable working temperature, and long service life.
4. The welding of machine main structures use automatic welding robot, key parts welding flaw detection to ensure all parts in high strength, high quality, and to prolong the service life of the machine.
5. Good vibration and noise effect of the cab, both warm and cool air-conditioner, makes driving comfortable and safe.
Parameter of 13.5 Ton Heavy Hydraulic Bucket Wheeled Excavator
|
Standard Bucket Capacity(m3) |
0.6 |
|
Swing Speed(rpm) |
12 |
|
Max.Grade Ability(°) |
25 |
|
Max.Bucket Digging Force(kN) |
68 |
|
Max.Arm Digging Force(kN) |
54 |
|
Engine Model |
YC4A115-T20 |
|
Rated Power Output/Revolution(kw/rpm) |
85/2200 |
|
Tire Type |
9.0-20 |
|
Set Pressure of Hydraulic Pump(MPa) |
32 |
|
MAX digging height(mm) |
7580 |
|
MAX dumping height(mm) |
5340 |
|
MAX digging depth(mm) |
4095 |
|
MAX digging radius(mm) |
7557 |
|
Min swing radius(mm) |
2988 |
|
MAX dozer lifting height(mm) |
558 |
|
MAX dozer cutting depth(mm) |
80 |
Packaging: Nuke package or according to customer's requirement
Shpping: Excavators below 9 ton could be load into one 20ft or 40ft containers , excavators beyond 9 ton need to use flat rack or bulk carrier
