One-step service Conductive ring Okay?,Conductive ring preferred JINPAT Electronics

    Shenzhen JINPAT Electronics Co., Ltd. is a professional supplier which provides a variety of Slip ring customization, to provide customers withBest sellerSlip ring customization ,Conductive ringand Slip ring customization and so on. Since the company had been established in Southern International Plaza,Yitian Rd,Futian District,Shenzhen China,Futian district,Shenzhen City,Guangdong Province,China, adhere to people-oriented ,and the quality of survival, to the credibility of development,our company have made an outstanding achievement.

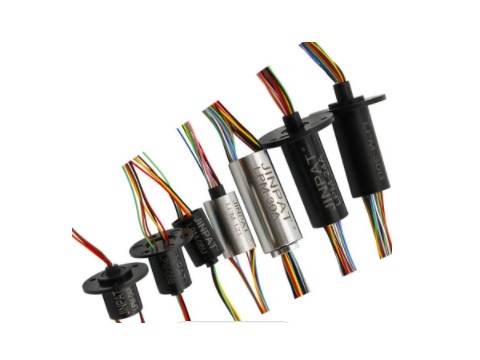

   The advantage of JINPAT Electronicspancake slip ringis that it can provide more professional and thoughtful solutions timely and accurately according to the actual needs of customers.At the same time, Our company follow the latest developments on Industry and agriculture,Manufacturing,Design and processing, and establish long and steady partnership relation with many well-known enterprises in the same industry , to provide customers with the most professional, advanced miniature Slip ringx2fe029en.Details:2. The conductive ring belongs to the application range of electrical contact sliding connection. It is also called collector ring, or rotary joint, rotating electrical interface, slip ring, collecting ring, return ring, coil, commutator and adapter. A precision power transmission device for image, data signal and power transmission of two relative rotating mechanisms. It is especially suitable for applications where unlimited continuous rotation is required while transferring power or data from a fixed position to a rotating position. The conductive ring is composed of an elastic material - a brush, a sliding contact surface material - a conductive ring, an insulating material, a bonding material, a combined bracket, a precision bearing, a dust cover, and other slip ring auxiliary members. The brush is made of precious metal alloy material, and the "II" type is symmetrically double-contacted with the conductive ring groove. The elastic pressure of the brush is in sliding contact with the conductive ring groove to transmit signals and current.Precision conductive rings are high-tech products that have long been used in cutting-edge military applications and are key components for precision turntables, centrifuges and inertial navigation equipment. With the continuous development of China's economy, more and more people in the civilian sector are involved in the use of such products for industrial automatic system control. In advanced foreign developed countries, these products have gradually been transformed from military products into civilian products. In recent years, they have achieved standardization and mass production, and are widely used in security, factory automation, power, finance, instrumentation, aviation, military, Transportation, construction and other mechanical and electrical equipment.The slip ring technology of the conductive ring: 1. The composite brush block technology generally adopts the forms of carbon brush, copper brush, silver/graphite/molybdenum disulfide brush. 2. Use precious metal alloy monofilaments, such as AuNi9. 3, fiber brush technology, fiber brush refers to a special sliding electrical contact design. The fiber brush is simply a matter of aligning individual metal filaments (wires) into a metal tube. In this cantilever design, the loose, unbound end of the fiber bundle is attached to the groove in the surface of the annulus. Reason for selection: In the electrical design process, when the mechanical part is rotated 360 degrees without restriction, the wire needs to be connected to the rotating part, and the electrical engineer will encounter the problem of wire winding. At this time, he needs an electric rotary connector, commonly known as electric A slip ring to transmit the rotational connection of power and signal. Structure type: The slip ring structure is divided into cylindrical type and disc type. The loops of the cylindrical slip ring are arranged along the axis of the cylinder, just like the threads on the bolt. The ring of the disc slip ring is concentric, just like the ditch on the record of the record player. Most of the current use of cylindrical slip rings, unless the height is limited, the disc slip ring will be used.

   JINPAT Electronics always adheres to the corporate purpose: and advancing with the times,make progress together with101-500 people people, and go hand in hand to get innovation and a win-win situation. To get more information about Slip ring customization,electrical swivel connector, you can log in and look through JINPAT Electronics official website:www.slipring.cn
