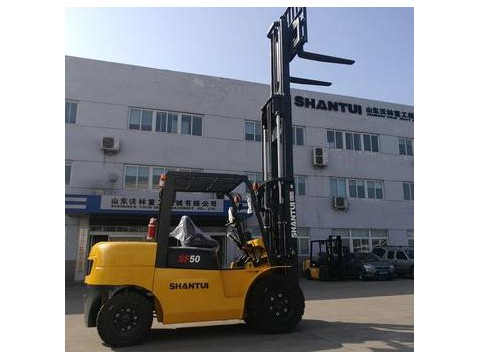

5 ton types of forklifts fork lift truck price, this is a small 5 Ton Forklift, with 4 tires, front 2 tires and rear 2 tires. The engine capacity is about 60 kw, it can optional with container mast, which suitable working inside the container and load materials. the forklift tires is 300-15 and 7.00-12, standard is pneumatic tires, for some working place, it can optional with Solid tires.
Specification
| Model | SF50 | |
| Load capacity | 5000 | |
| load center | 600 | |
| Power type | Diesel | |
| Lift size | 3000 | |
| Fork size | 1220x175x50 | |
| Mast tilt angle | /6/12 | |
| Front overhang | 627 | |
| Overall dimensions | Length to face of fork | 4690 |
| Overall width | 1995 | |
| Overall height fork lowered | 2500 | |
| Overhead guard height | 2450 | |
| Turning radius | 3250 | |
| Travel speed(full load/no load) | 26/28 | |
| Lift speed with load | 500 | |
| Max.gradeability | 20 | |
| Self weight | 8183 | |
| Tires | Front | 8.5-15-14PR |
| Rear | 8.5-15-14PR | |
| Tread | Front | 1470 |
| Rear | 1700 | |
| Wheelbase | 2250 | |
| Min.ground clearance(mast) | 200 | |
| Engine | Model | ISUZU 6BG1 |
| Rated output | 82/2000 | |
| Rated torque | 415/1500 | |
| No.of cylinder | 6 | |
| Bore×stroke | 105x125 | |
| Displacement | 6.5 | |
Company Profiles
Shandong Volin Heavy Machinery Co.,ltd. is a subsidiary of Shantui Group. It is professional manufacturer and supplier of Shantui forklift trucks. Our main products include Diesel Forklift, Electric Forklift and Gasoline Lpg Forklift, Construction Machinery like bulldozer, Wheel Loader, excavator, motor grader and road roller and Construction Machinery Parts.
about Shantui Group
1. One of the largest China state-owned company
2. World top 50 machinery manufacturer
3. Member of top 500 enterprises in China
4. Joint-Venture with Japan Komatsu since 1990
5. Export to over 150 countries and regions
