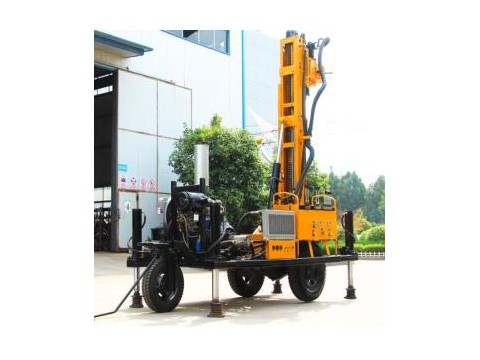

Hydraulic bore pile rock drilling machine

1. Rock Drilling Machine the engine uses Guangxi Yuchai 85Kw turbocharged engine;
2, Bore rock Drilling Machine walking device: travel motor with gearbox, long life and durability;
3, Hydraulic rock drilling machine hydraulic oil Pump; parallel gearbox design (patent) oil pump unit separate, power supply is adequately allocated, hydraulic system unique design, maintenance and simple cost;
4, Hydraulic Bore Pile Rock Drilling Machine power head device; gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5, Water drilling machine chassis; professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6, lifting force; patent design composite boom, small arm volume, long stroke, double cylinder lifting, increase tonnage;
7. Each rig is equipped with a limiter for lifting the boom to protect the cylinder and ensure work safety;
8. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe have a longer service life.

Dimensions (mm) 3800 * 1600 * 2600
Drilling diameter (mm) 140
Drilling depth (m) 200
One advance length (mm) 3000
Walking speed (km / h) 2.5
Standby climbing ability (max) 30
Minimum ground clearance (mm) 250
Working pressure (mpa) 1.7-3.0
Air consuption (m3 / min) 17-35
Host power (kw) 65
Rotation speed (rpm) 50-70
Rotary torque (Nm) 5000-6500
