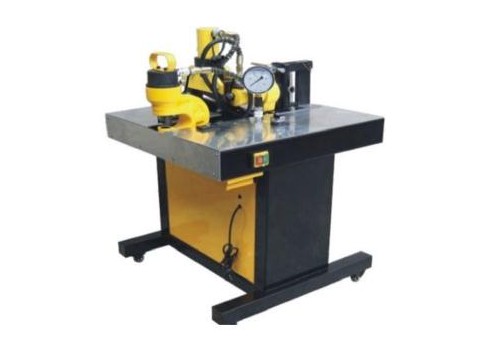

Hydraulic Busbar Processing Machine is suitable for the production of large-scale electric control boxes, power distribution cabinets, switch cabinets and transmission and distribution construction projects. Hydraulic Busbar Machine is designed with reference to foreign advanced products and combined with the actual domestic operation conditions to design equipment for improving work efficiency and ensuring the safety of operations. Busbar processing machine has high flexibility, small size and strong function, high production capacity and high work efficiency, low noise and harmless, beautiful finished products and no pollution to the working environment.
|
Model |
HW-150 |
HW-200 |
|
Functions |
With three functions: cutting,punching,bending |
With three functions: cutting,punching,bending |
|
Input voltage/control voltage |
Single phase 50HZ,220V |
Single phase 50HZ,220V |
|
Rating working oil pressure |
700Kgf/cm2 (over pressure safety valve setting valve) |
700Kgf/cm2 (over pressure safety valve setting valve) |
|
Outlet force of busbar cutter |
15T |
20T |
|
Busbar cutting capability |
Copper busbar / Aluminum busbar 150mm*12mm |
Copper busbar / Aluminum busbar 200mm*12mm |
|
Outlet force of puncher |
31T |
35T |
|
The distance between hole centre and busbar edge |
95mm |
110mm |
|
Punching capability-copper busbar / aluminum busbar |
φ6-φ20.5Max.Thickness:10mm |
φ6-φ20.5Max.Thickness:12mm |
|
Standard assembled punching dies |
φ7, φ9, φ10.5, φ13.8, φ17.5, φ20.5mm |
φ7, φ9, φ10.5, φ13.8, φ17.5, φ20.5mm |
|
Outlet force of bender |
20T |
20T |
|
Horizontal bending capability |
150*12mm |
200*12mm |
|
Weight |
170Kg |
195Kg |
|
Dimension of moveable workbench |
65*60*110cm |
80*75*110cm |
