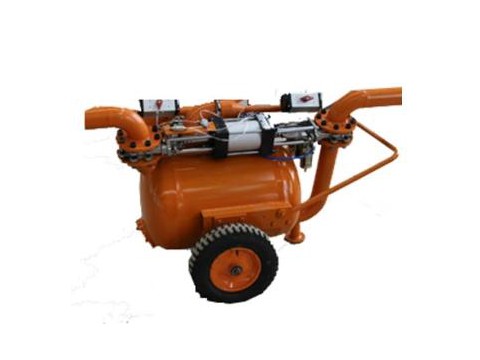

Pneumatic sewerage pump Australia Pneumatic Pump Sewage Sand Pump Pneumatic Sand Pump
QYF series intelligent mine pneumatic desilting sewage pump efficiency, is my company independent innovation, independent research and development, with independent intellectual property rights of drainage equipment series, product technology at the international leading level. Australia Pneumatic Pump Sewage Sand Pump Pneumatic Sand Pump
QYF series pneumatic desilting mine sewage pump powered by compressed air, suitable for methane coal dust explosion hazard of coal mine underground mining face roadway, bottom hole water nest, and sewage pit (well), such as water sump drainage drainage operation. Australia Pneumatic Pump Sewage Sand Pump Pneumatic Sand Pump
We developed QYF series pneumatic desilting mine sewage pump has realized the coal mine water warehouse of coal slime and water mixture good efficient processing, thoroughly remove the artificial dig water storehouse of heavy labor, at the same time, reduced the number of newly built underground water warehouse, not only improve the comprehensive economic benefits of the mine water CangQing dig, and implement the environment management and protection, save time and effort, has extensive practicability.Australia Pneumatic Pump Sewage Sand PumpPneumatic Sand Pump
The technical characteristics of QYF series mining pneumatic dredging pump
1. This series of dredging pump is advanced in structure, convenient in movement and stable in work. The working cycle is controlled by pneumatic timer, and the pump body has no moving parts.
Can adjust the timer according to the experience to improve the pumping efficiency. Australia Pneumatic Pump Sewage Sand Pump Pneumatic Sand Pump
2. The control system adopts the advanced air control valve to control and switch the actuator, and the safety performance is high and the action is sensitive and reliable.
The structure and working principle of QYF series mining pneumatic dredging pump Australia Pneumatic Pump Sewage Sand Pump Pneumatic Sand Pump
The main components of QYF series are main parts, control system and vacuum suction components.
1. Main body part: consists of pump body, feed pipe and discharge pipe, and its work is to absorb material and discharge. oxygen self-resucer.
2, control system, control system mainly using pneumatic directional control valve, shuttle valve, ball valve, and time is the combination of logical reversing valve body, realizes the control of the actuator and switch, reaches the unit work orderly transformation of absorb and layout. Australia Pneumatic Pump Sewage Sand Pump Pneumatic Sand Pump
3. Vacuum suction component: it is designed according to the principle of venturi effect, including air supply, vent and vacuum.
When the supply of gas supply pressure is higher than a certain value, the injection of supersonic jet nozzle, due to the viscosity of the gas, high-speed jet gas entrainment go negative pressure cavity, this cavity to form high vacuum degree.
The performance of the vacuum generator is related to the minimum diameter of the nozzle, the shape of the contraction and diffusion tube, the diameter of the nozzle and its relative position and the pressure of the gas source.
The vacuum suction component can be connected with the feed through the pump body, and the suction and discharge process of the unit can be completed when the control system is switched to control the cylinder
Owing to the ethical business dealings and client-centric business policies of our Mentor,we have worked really hard to get organization emerged as the topmost business firms and have also gained a strong presence in the markets. our excellent industry experience and futuristic vision have enabled us to compete with the other well reputed companies in the same domain.
we also supply the Coal Feeder ,Air Cannon ,Hoop Directing Device,Gas Detector ,electrical machine ,
Australia Pneumatic Pump Sewage Sand Pump Pneumatic Sand Pump
We are blessed with a hard working and knowledgeable team of professional, we have been able to provide a wide range of our and to maintain the entire business process easily, we have divided our team into several sections like engineers, quality experts, technicians, packaging and administrative personnel, R and D personnel and sales & marketing executives. Our team of experts works in close-coordination with our clients to meet their exact needs and furnish them as per the same.
Australia Pneumatic Pump Sewage Sand Pump Pneumatic Sand Pump
We also fabricate our products using the best quality factor inputs and by utilizing cutting edge technologies that assist us in making a range of unmatched quality and durability. Apart from these, the other factors that gave us a competitive edge over other organizations includes quality range of industrial products, presence of well-qualified and experienced professionals, efficient and timely services, prompt and safe delivery of the products, wide distribution network, low maintenance costs, etc.
