For the autonomous applications a lidar with a 3-D scanner is used for obstacle detection and collision avoidance. The scanner measures radial distance at different angular resolutions. The lidar emits a single laser ray and uses an interior rotating mirror to distribute the laser ray covering a large field of view.
Production Introduction

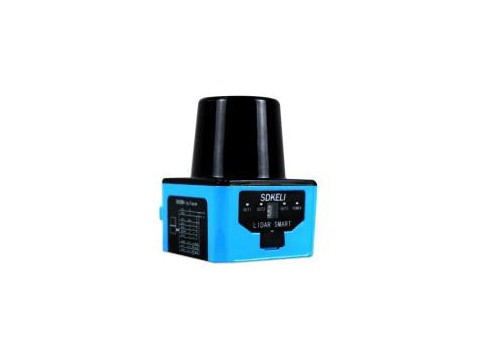

LS series of Laser Radar can achieve the two-dimensional zone detection and profile scanning with a range of 270° and a radius of 10m, featuring small size, high flexibility, good precision and reliability and high cost performance, so it is the ideal choice for the obstacle avoidance and navigation of mobile robot.
Product composition
The LS system is composed of one laser radar, one distribution line and configuration software. Users can use the configuration cable to connect the lidar with the computer, and configure the protection zone and other related parameters through the configuration software.
Product features
It is the current smallest domestic pulse laser radar on the market, with dimensions of 6cm×6cm×8cm, thus facilitating user integration;
based on pulse laser ranging technology, the pulse light energy value is 1000 times higher than that of a continuous constant light source, thus ensuring the stability and reliability of measurement. Meanwhile, combined with nanosecond narrow pulse technology, it is Class 1 laser product which is safe to human eyes;
With very fast scanning speed, it can complete 25000 times of measurement within 1s, and the scanning time of single turn is 40ms;
With industrial design, it is stable and reliable. IP65, dedicated temperature drift error elimination design, professional EMC design and harsh testing, environmental light, shock and vibration and other tests;
The detachable window design can facilitate maintenance, reduce maintenance costs and improve the service life of product.
There are 16 groups of definable detection zones at most. The detection zones can be defined as any complex and irregular shapes according to user needs.
